Conmet Conventional - Conmet U-Shaped Rotors

Part No. 10085401A
10-2021 Printed in the USA
DISC BRAKE ROTOR REPLACEMENT
Install the brake rotor using only the hardware provided in the kit.
1. Clean the rotor mounting surfaces and position the rotor onto the hub.
2. Thread in all 10 of the new rotor fasteners included in the kit.
Torque in a star pattern to 200 ft-lbs.
Service Kit Part Number 10082074
ConMet U-Shaped Rotor 10041006
Rotor Minimum Thickness 1.46" (37.0 mm)

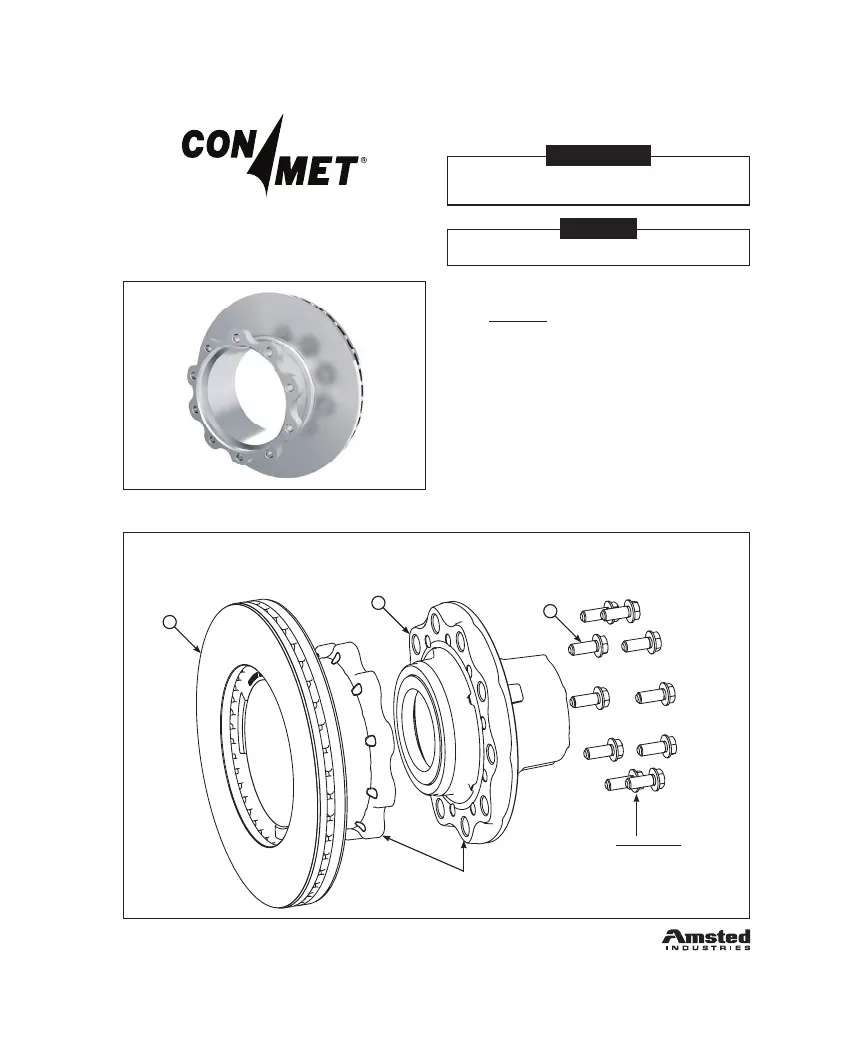

ConMet 10041006 U-Shaped Rotor
1. Hub Assembly (not included)
2. 10041006 U-Shaped Rotor
3. 5/8" -11 UNC x 1.75" SEMS Fasteners (10 ea.)
SEE CONMET SERVICE MANUAL FOR
DETAILED HUB SERVICE INFORMATION
Clean all component mating
surfaces before assembly
Torque in a star pattern
to 200 ft-lbs
NOTE
Failure to follow the stated instructions can jeopardize the rotor attachment
and potentially lead to failure of the rotor and/or damage to the wheel hub.
WARNING
ConMet | 5701 SE Columbia Way, Vancouver, WA 98661 | 800.547.9473 | conmet.com
1
3
2
