Conmet Conventional - Spindle Nut and Spiral Snap Ring Reassembly

PreSet Plus Wheel Hubs – Reassembly
36 ConMet
22
105749a

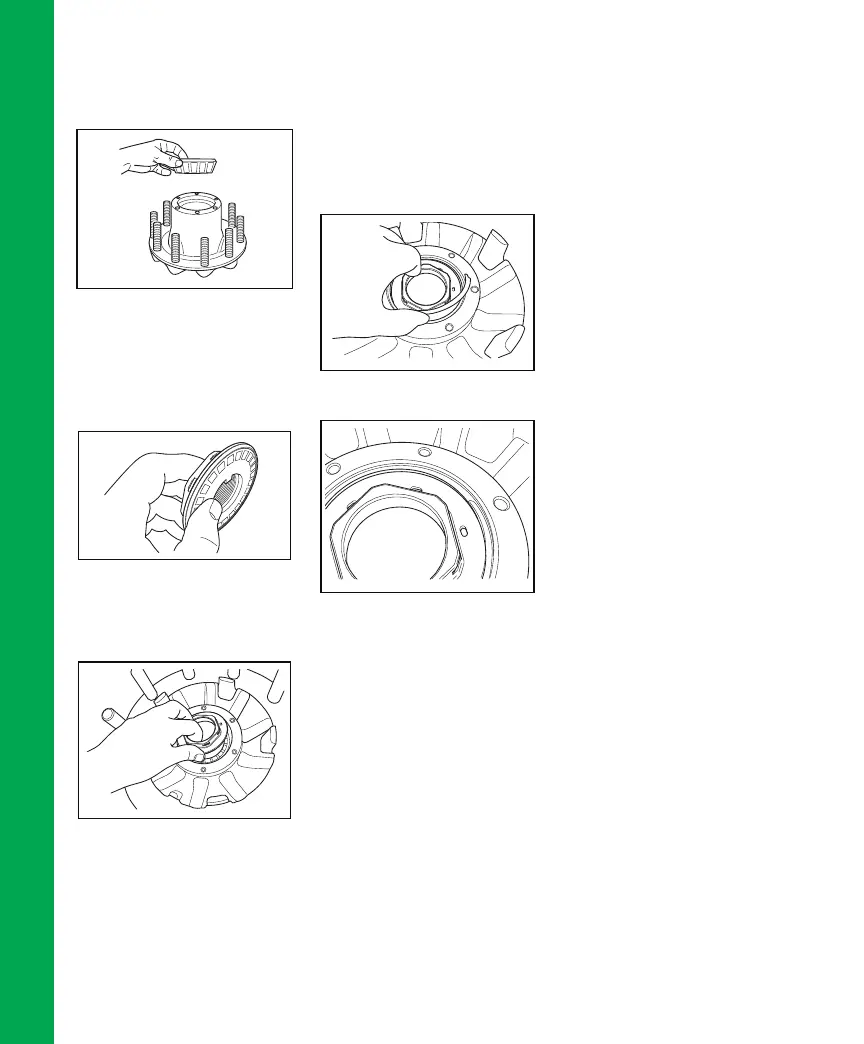

Installing the Outer Bearing Cone
FIGURE 81
Spindle Nut and Spiral Snap Ring
Reassembly
1. Seat the at washer into the
back of the spindle nut (see
gure 82).
23
106872b
Seating Flat Washer into Spindle Nut
FIGURE 82
2. Position the spindle nut and
washer against the outer
bearing (see gure 83).
24
106873b
Positioning Nut, Washer Against Bearing
FIGURE 83
6. PreSet Plus Wheel Hubs – Reassembly
3. Install the spiral snap ring into
the snap ring groove in the hub.
Make sure that the snap ring is
fully seated into the groove in
the hub (see gures 84 and 85).
25
106874b
Installing Spiral Snap Ring
FIGURE 84
26
106875b
Fully Seating Spiral Snap Ring
in Groove of Hub
FIGURE 85
