Conmet Conventional - 1. Introduction; ConMet Hub Types Overview

Conventional Hubs
ConMet conventional hubs feature
precision-machined aluminum or
iron castings and are available in
steer, drive and trailer congurations.
Hubs are supplied with bearing cups
and studs installed. Bearing cones
and wheel seals are supplied by the
customer. Bearings must be adjusted
manually. See TMC RP618 for
specics of adjustment procedures.
1
106923a
ABS RING
INNER
BEARING
CONE
INNER
BEARING
CUP
OUTER
BEARING
CUP
OUTER
BEARING
CONE
LUBRICANT
FILL PLUG
OIL SEAL

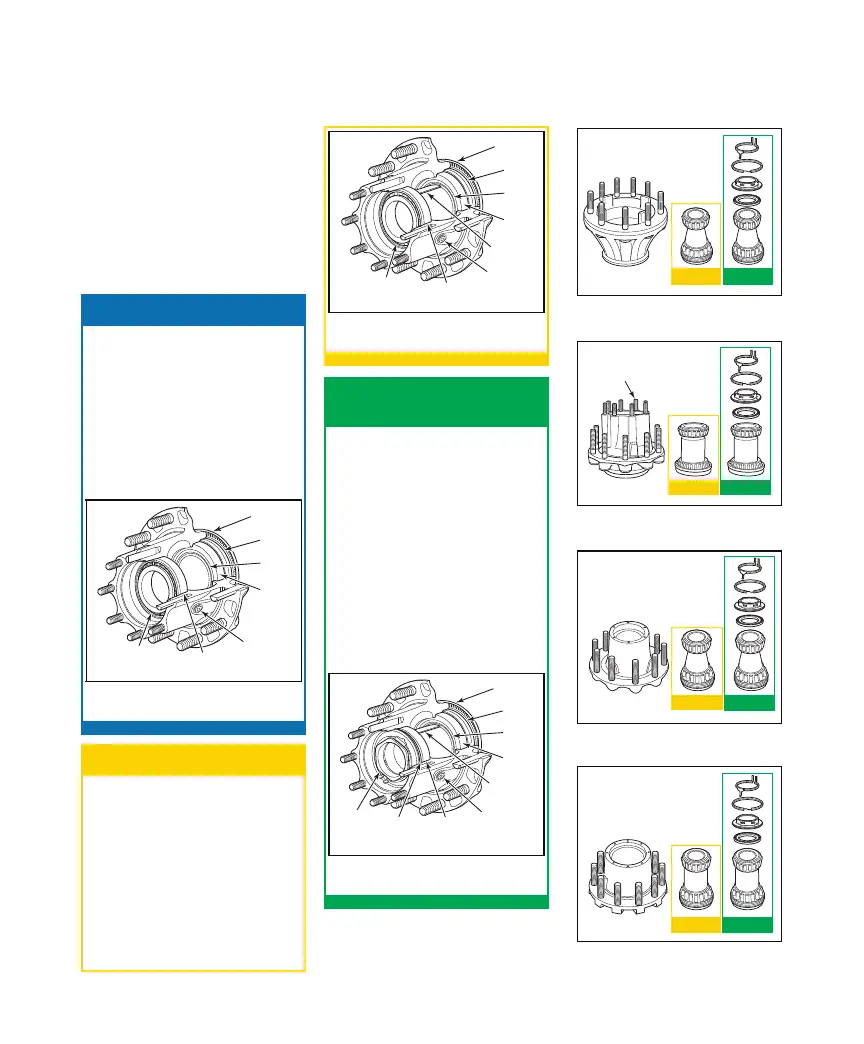

Conventional Hub and Components
FIGURE 1
PreSet
®
Hub Assemblies
ConMet PreSet hub assemblies
include precision-machined hubs,
premium seals, specially toleranced
roller bearings and unique precision-
machined bearing spacers. This
combination eliminates the need
to manually adjust wheel end play.
These components are delivered as
a complete assembly, reducing the
potential for premature failures due
to incorrect end play settings and/or
improper installation practices.
1ConMet
1. Introduction
ConMet offers three types of wheel
hubs:
- Conventional hubs with
manually-adjusted bearings
- PreSet hub assemblies with
pre-adjusted bearings
- PreSet Plus hub assemblies
with pre-adjusted bearings
and an integrated spindle nut
PreSet Plus
®
Hub
Assemblies
ConMet PreSet Plus hub assemblies
feature the same PreSet technology
and include the same precision-
machined hubs, premium seals
and specially toleranced roller
bearings. However, PreSet Plus hubs
incorporate the following:
- An integrated spindle nut
that eases installation and
disassembly and protects
components during wheel end
service
- An optimized spacer
- Standard magnetic ll plug
1
106922a
ABS RING
INNER
BEARING
CONE
INNER
BEARING
CUP
OUTER
BEARING
CUP
OUTER
BEARING
CONE
INTEGRATED
NUT
LUBRICANT
FILL PLUG
OIL SEAL
SPACER
(SECTIONED)
PreSet Plus Hub and Components
FIGURE 3
1
106924a
ABS RING
INNER
BEARING
CONE
INNER
BEARING
CUP
OUTER
BEARING
CUP
OUTER
BEARING
CONE
LUBRICANT
FILL PLUG
SPACER
(SECTIONED)
OIL SEAL
PreSet Hub and Components
FIGURE 2
2
106876a
MACHINED
STEER HUB
PRESET
COMPONENTS
PRESET PLUS
COMPONENTS
Steer Hub and Components
FIGURE 4
3
106818c
MACHINED
DRIVE HUB
NOTE: CAN BE WITH
OR WITHOUT
AXLE STUDS.
PRESET
COMPONENTS
PRESET PLUS
COMPONENTS
Drive Hub and Components
FIGURE 5
4
106819c
MACHINED
TN TRAILER HUB
PRESET
COMPONENTS
PRESET PLUS
COMPONENTS
TN Trailer Hub and Components
FIGURE 6
5
106820c
MACHINED
TP TRAILER HUB
PRESET
COMPONENTS
PRESET PLUS
COMPONENTS
TP Trailer Hub and Components
FIGURE 7
