1. Clean the rotor mounting surfaces and position the rotor onto the hub.
2. Using the new fasteners included in the kit, thread in all 10 cap screws with a
washer on each. Torque in a star pattern to 110 ft-lbs.
Service Kit Part Number 10020611
ConMet Flat Rotor 10019996
Rotor Minimum Thickness 1.42" (36.1mm)

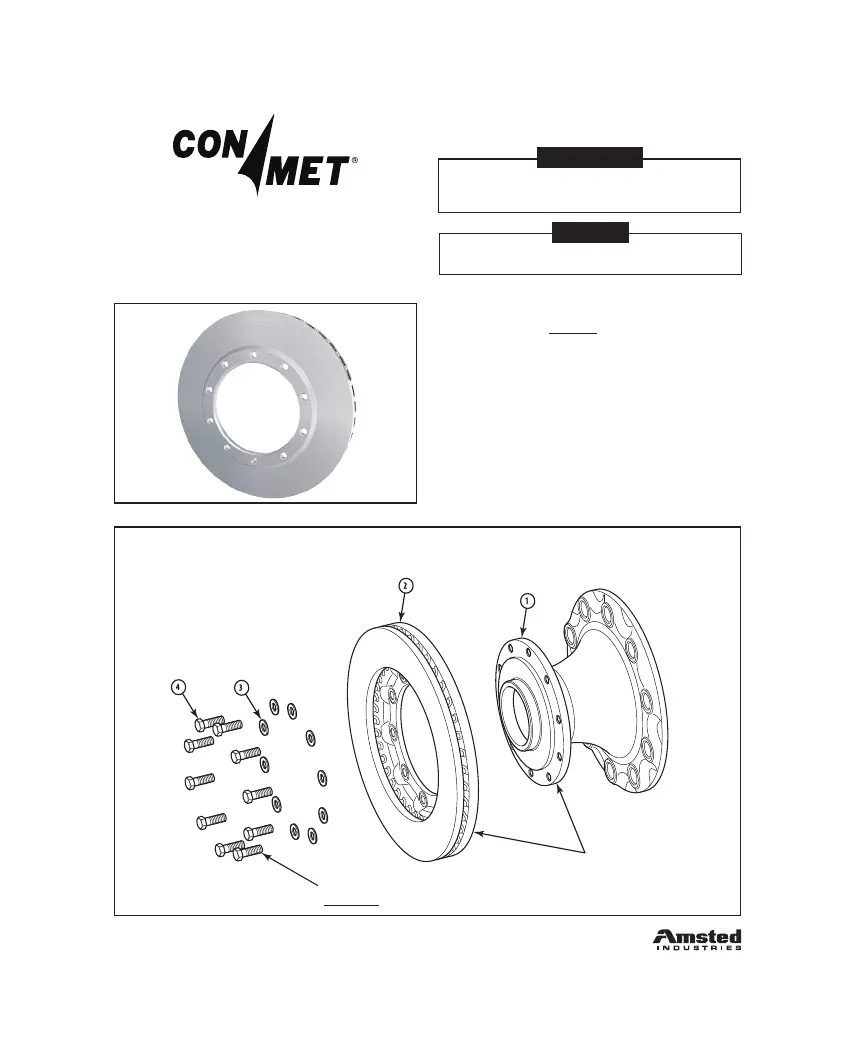

ConMet 10019996 MD Flat Rotor
1. Hub Assembly (not included)
2. 10019996 Flat Rotor
3. 1/2" Flat Washer (10 ea.)
4. 1/2"-20 UNF Rotor Cap Screw (10 ea.)
SEE CONMET SERVICE MANUAL FOR DETAILED HUB
SERVICE INFORMATION.
Clean all component mating
surfaces before reassembly.
1/2"-20 UNF rotor cap screws. Torque in
a star pattern to 110 ft-lbs.
Part No. 10085394A
10-2021 Printed in the USA
Install the brake rotor using only the hardware provided in the kit.
NOTE
Failure to follow the stated instructions can jeopardize the rotor attachment
and potentially lead to failure of the rotor and/or damage to the wheel hub.
WARNING
DISC BRAKE ROTOR REPLACEMENT
