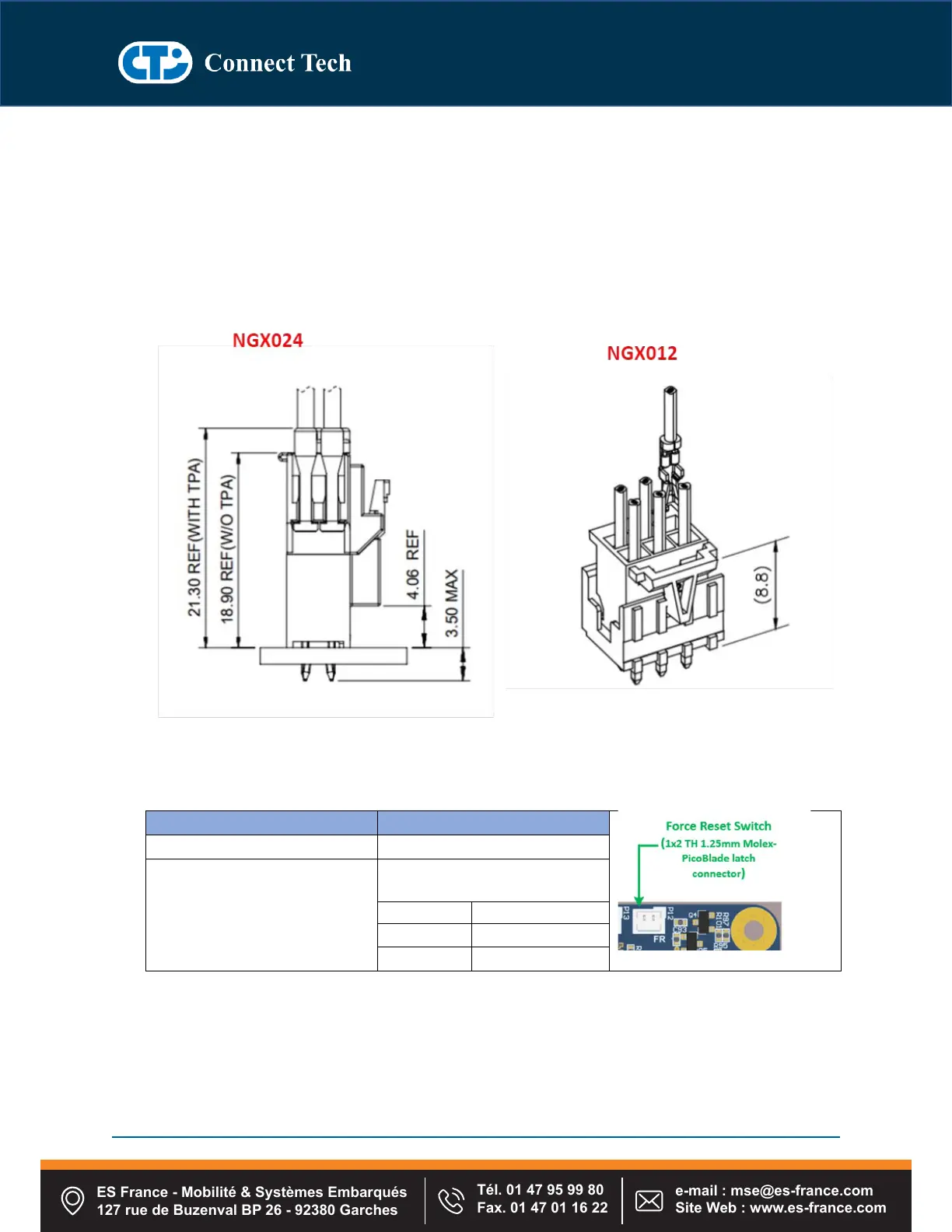

Input Power connector
The power connector for NGX024 has been upgraded to support the additional power required for the
new camera. The height of the connector has also been changed as shown in the diagram below.
Power connector:
NGX024: 2x2 Molex Nano-Fit
NGX012: 2x3 TH 2mm MiniTek
Force Reset Connector
The force reset connector has been upgraded from 1x2 2mm jumper to a 1x2 miniTek latch connector.
Function
Description
Location
P12
Type
1x2 TH 1.25mm (Molex –
PicoBlade) connector
Pin
Description
1
FR/RST
2
GND
