2.5 Electrical connection
For the connection of the ST450EC, the cable must be inserted in the proper manner. (See
chapter 2.2 - Cable requirements and cable installation). The signal must be connected to the
power supply and the signal output of the sensing head. These connections are available on
connector CON1 (see wiring diagram). The connector CON1 is accessible on the rear side of the
main PCB.

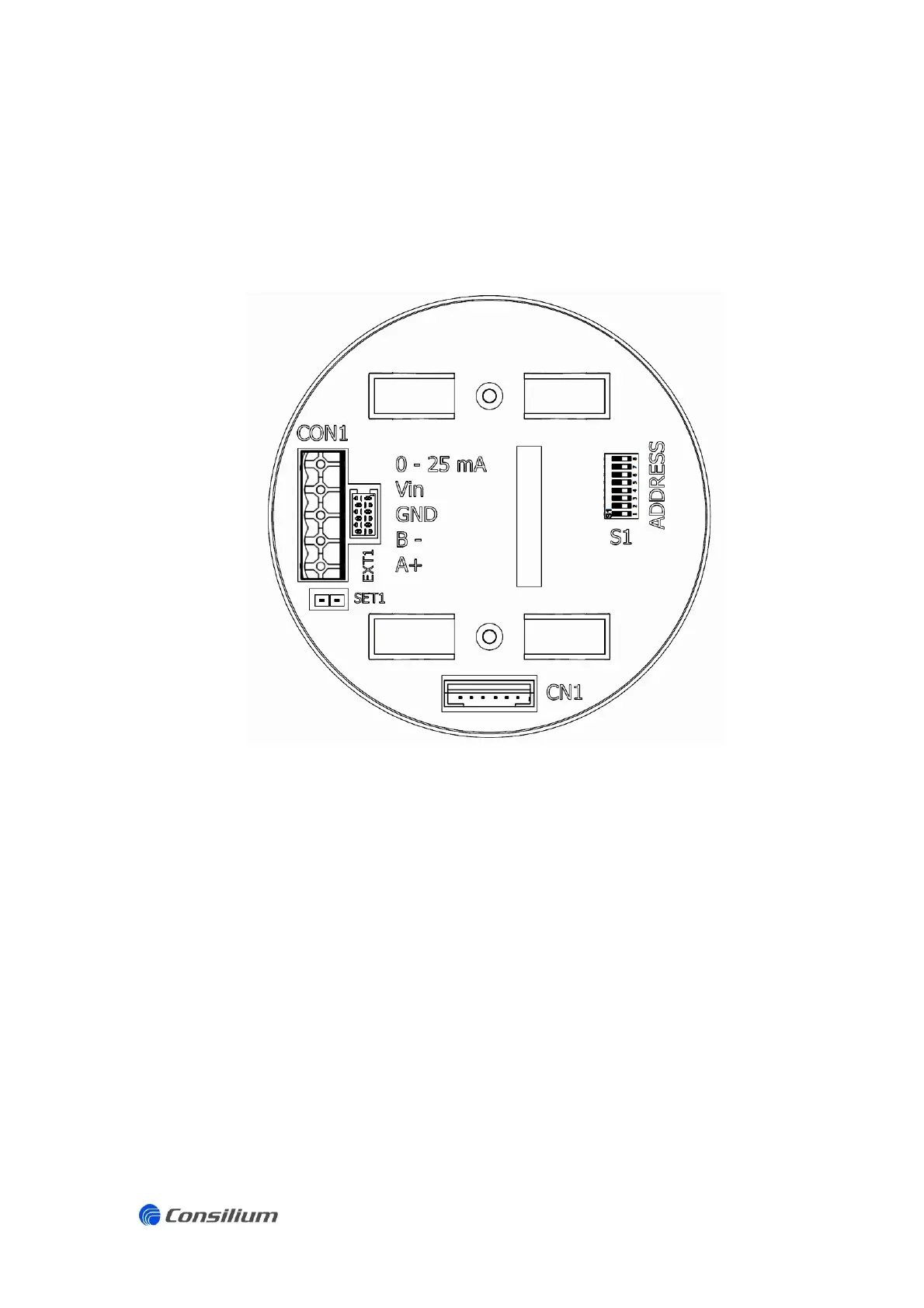

Rear side of housing PCBA ST450EC
