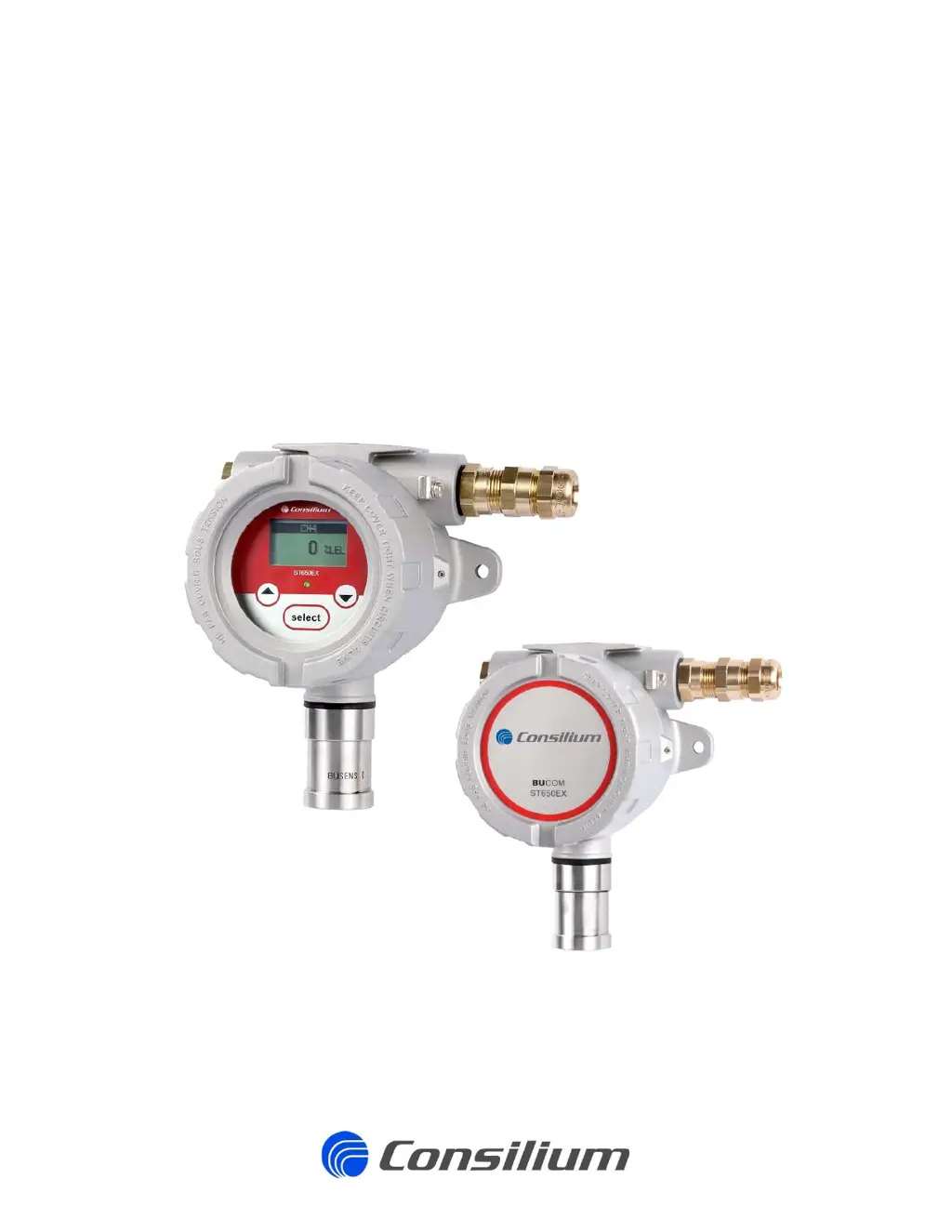

Why is my Consilium ST650EX Measuring Instruments gas detection control system alarming with no gas present?
If the gas detection control system produces an alarm when no gas is present, it might be due to a connection cable issue. Ensure the cable is installed in separate cable conduits, away from possible interference sources. Another cause could be a detector cell defect, in which case you should check or replace the detector cell.
What to do if the output signal doesn't agree with the expected value on Consilium Measuring Instruments?
If the output signal of your Consilium Measuring Instruments does not match the expected value, it could be due to several reasons. First, ensure that the sensing head is correctly calibrated; if not, calibrate it. Also, check the connections of the sensing head and the sensor to ensure they are properly connected.
Why doesn't the display reading correspond with the applied gas on my Consilium ST650EX Measuring Instruments?
If the display reading on the Consilium Measuring Instruments control module does not correspond with the applied gas, the sensing head may not be correctly calibrated. Calibrate the sensing head. Also, check the sensing head and sensor connections to ensure they are properly connected.
What does it mean when the Status-LED is RED on Consilium Measuring Instruments?
If the Status-LED lights RED on your Consilium Measuring Instruments, it could indicate that the sensor is not connected. Check the sensor connections. It could also mean the measurement value is too high (overload). If overloaded, ventilate the area, disconnect the source, and recalibrate the sensor.
Why is the Status-LED flashing RED on my Consilium ST650EX Measuring Instruments?
If the Status-LED is flashing RED on your Consilium Measuring Instruments, it could be because the sensor is not connected properly. Check both the sensor and sensing head connections to ensure they are secure.
What to do if the Status-LED does not light on Consilium ST650EX?
If the Status-LED does not light or flash on your Consilium Measuring Instruments, the sensing head may not be active. Wait a while or restart the power up sequence to see if it activates.
How to fix mA signal not changing during Consilium Measuring Instruments calibration?
If the mA signal does not change during calibration of your Consilium Measuring Instruments, it may be because the calibration lock is active. Deactivate the calibration lock to proceed.
Why can't I adjust the ZERO or SPAN Calibration value on Consilium ST650EX?
If you cannot turn the ZERO or SPAN Calibration value higher or lower on your Consilium Measuring Instruments, the sensor might be out of date or the potentiometer may be faulty.
General rules for installing the sensing head, considering environment and airflow.
Specifications for signal cables and proper installation methods for strain relief.
Determining maximum cable length based on system impedance and cable resistance.
Requirements for reliable power supply and backup systems in industrial settings.
Wiring diagrams and connection details for the sensing head and control unit.
Protecting the sensing head and cables from external noise sources and interference.
Explanation of output signals (4-20mA) and status LED indicators.
Using control buttons and the LC-display for navigation and status monitoring.
Procedure for calibrating the sensing head using potentiometers on the PCB.
Steps for performing zero calibration with or without synthetic air.
Procedure for span calibration using certified calibration gas and calculation.
Using the LC-display and control keys for calibration menu navigation.
Performing zero calibration through the LC-display interface.
Performing span calibration through the LC-display interface.
Understanding and responding to various LCD messages and alarms.
Diagnosing issues based on error messages and corresponding solutions.
Detailed specifications for the ST650EX gas detector, including gas types and sensors.
Detailed specifications for the ST650-CO2 gas detector, including gas types and sensors.
Detailed specifications for the ST350EX gas detector, including gas types and sensors.
General specifications for power, outputs, signal cable, and load impedance.
List of available spare gas sensors for the ST650EX model.
List of available spare gas sensors for the ST650-CO2 model.
List of available spare gas sensors for the ST350EX model.
List of optional accessories for the gas detection system, including cables and adapters.
Catalog of test gases, flow adapters, and humidity bottles for calibration.
Diagrams of PCB connections for CON1, CON2, and CON4.
Factory settings and configuration options for DIP-switch arrays Sxx, S1, and S2.
Mechanical dimensions and mounting details of the sensing head.
Information on ATEX, IECEx, and other relevant certifications.
General| Brand | Consilium |
|---|---|
| Model | ST650EX |
| Category | Measuring Instruments |
