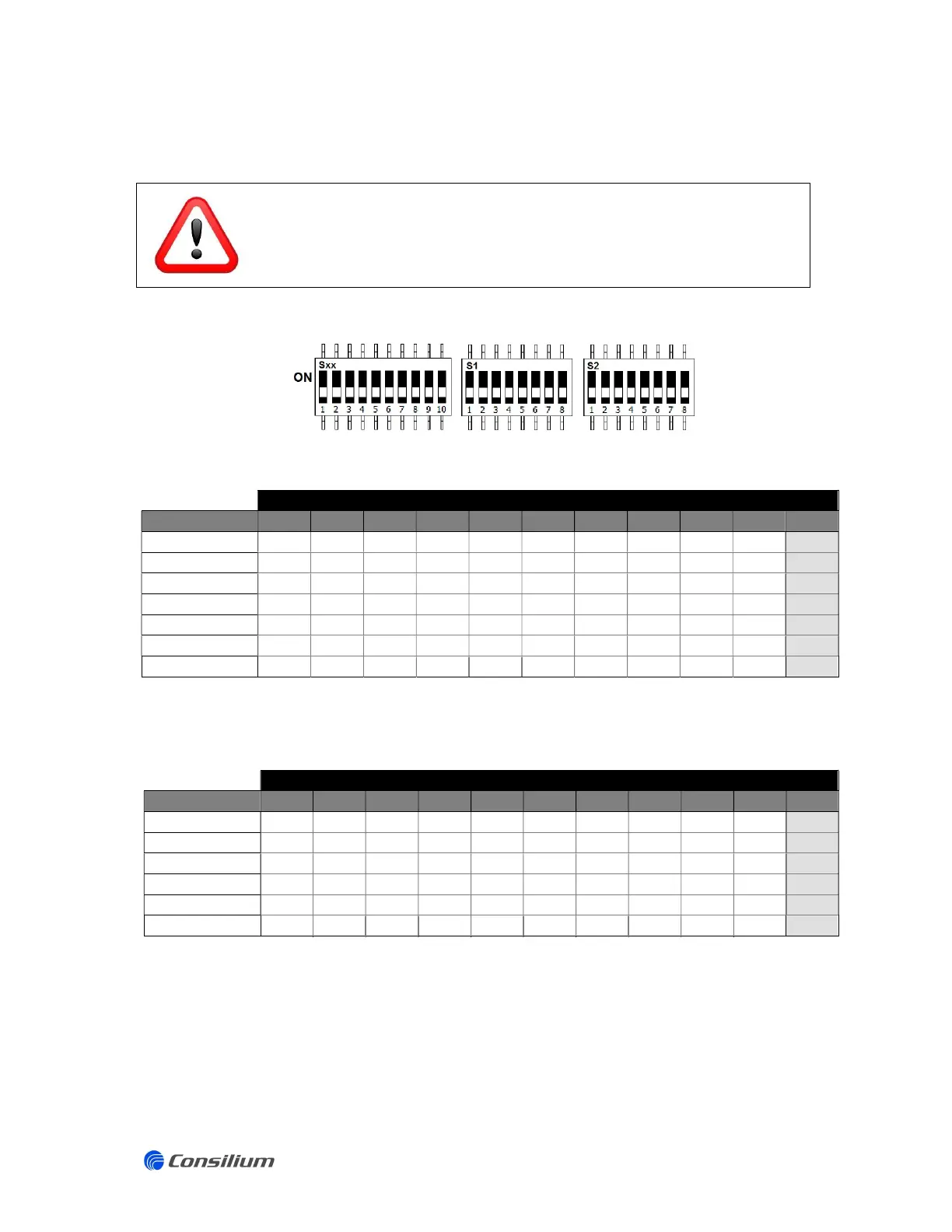

B. DIP-Switch settings
The following charts show the factory settings of the DIP-switch arrays.
Changing the settings of a DIP-Switch influences the operation of the detector. Make
sure the DIP-Switches are set according to the following charts. Contact Consilium when
in doubt!
The sensing head should be calibrated after each DIP switch change.
ST350EX:
DIP-switch Sxx
Version: 1 2 3 4 5 6 7 8 9 10 U
sens
Sensortype SCV Off On Off Off Off Off On Off On On 5,0V
Sensortype SCF On On Off Off Off Off On * * * 5,0V
Sensortype SCA On Off Off Off Off Off On * * * 5,0V
PID ppb (10ppm) On On On Off On Off Off Off Off Off 3,3V
PID ppb (50ppm) On On On Off On On Off Off Off Off 3,3V
PID ppm (100ppm) On On On Off On Off Off Off Off Off 3,3V
PID ppm (1000ppm) On On On Off On On Off Off Off Off 3,3V
* The setting of DIP-switch 8, 9 and 10 is variable. The exact configuration depends on the calibration, the gas
type and the measurement range. When in doubt, do contact Consilium.
ST650EX:
** For sensor type 3, 25 and type 41, the setting of DIP-switch 4 and 5 may differ from the factory default setting
as specified above. The setting depends on the target gas and the corresponding calibration. When in doubt, do
contact Consilium.
DIP
-
switch Sxx
Sensor type: 1 2 3 4 5 6 7 8 9 10 U
sens
type 3 compact Off Off Off Off** On** On Off Off Off Off 2,5V
type 3 remote, HT Off Off Off Off** On** Off Off Off Off Off 2,5V
type 6 Off Off On Off On Off Off Off Off Off 2,0V
type 25 Off On On Off** On** Off Off Off Off Off 2,0V
Sensor type 41
Sensortype
Off On On Off** On Off Off Off Off Off 2,0V
Sensor type IRs On Off Off Off Off Off Off Off Off Off 5,0V
