Contex SD3600 - Scanner Controller Board (SULG)

4-14
Part replacement

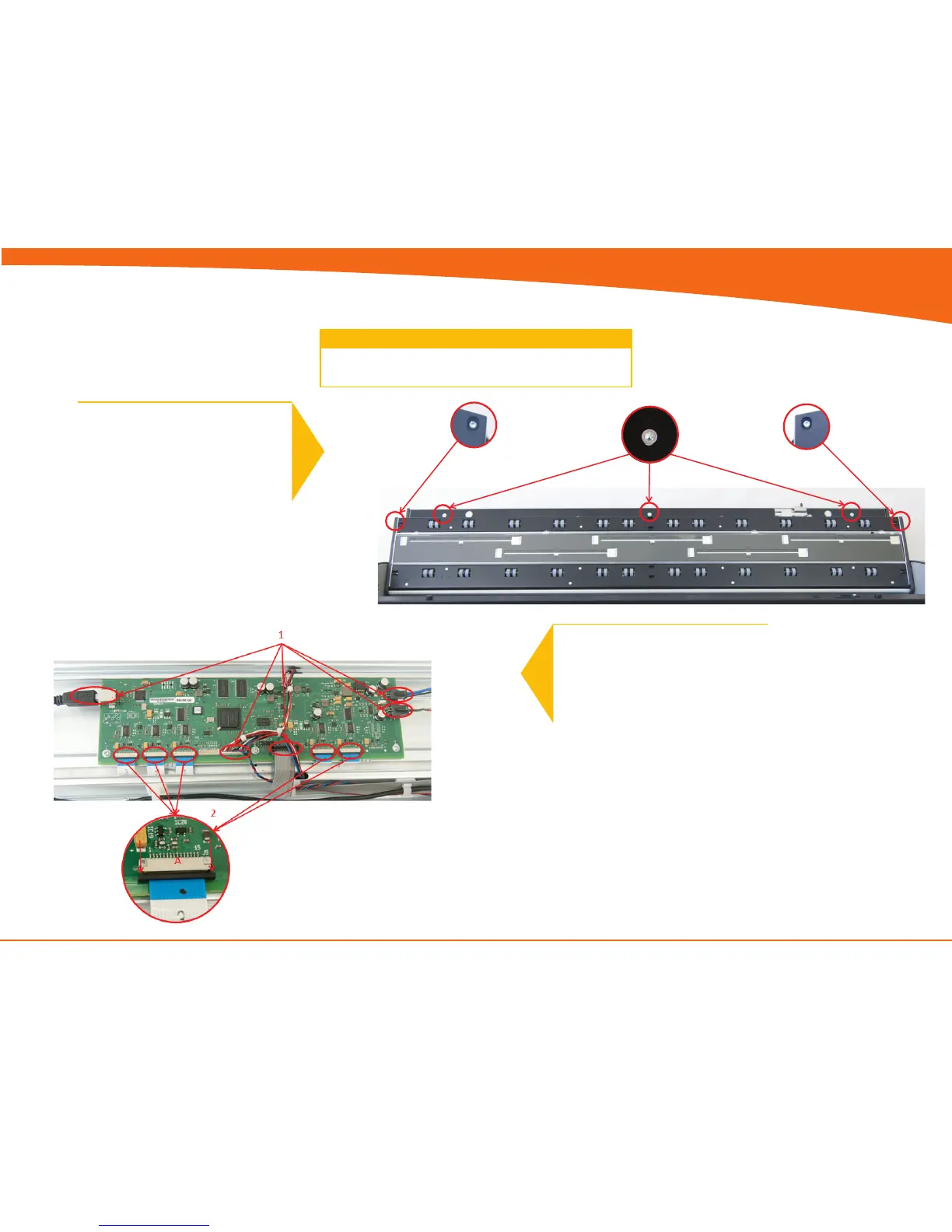

Scanner Controller Board (SULG)
Turn the off scanner and disconnect the power cord
and tilt open the CIS bridge.
Prerequisites
1
1. Remove screws marked S1
(Torx 10)
2. Open the CIS unit.
2
1. Disconnect cables
2. Release lock (A) on ribbon cables
and pull out cable.
