4-17
Part replacement

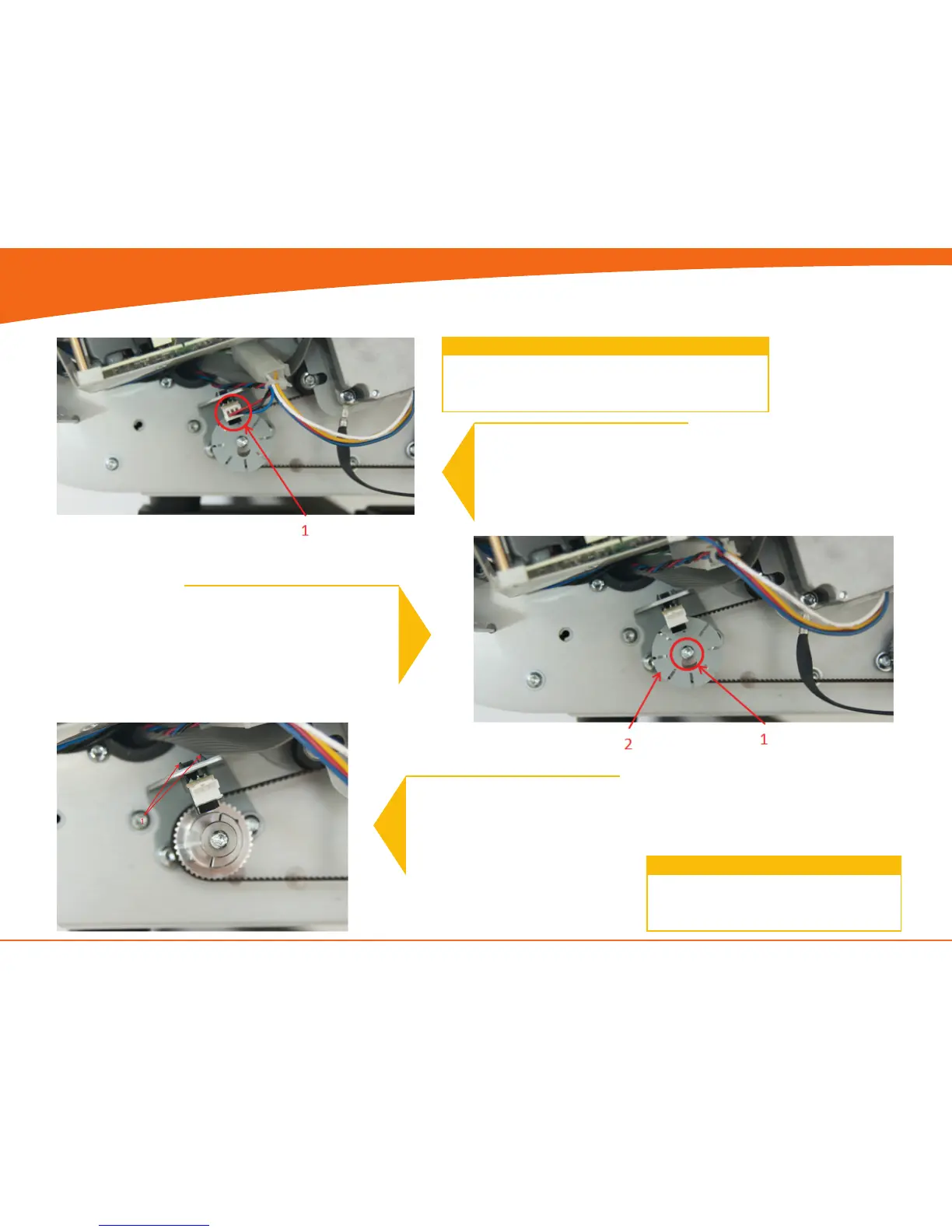

Tacho Sensor
Turn the off scanner and disconnect the power cord and
tilt open the CIS bridge.
Remove RHS cover, see page 4-8
Prerequisites
1
1. Disconnect Sensor cable
2
1. Loosen screw (don’t remove)
2. Remove Tacho wheel
3
1. Release lock taps and remove
sensor
Replace the Sensor and reverse the steps.
