EMS-96 Instruction Manual IM1200-U v1.6 Pag. 10 / 48
I/O options
It’s possible to add 7 optional configurations of I/O at the standard configuration:
a) 4 digital inputs and 2 digital outputs
b) 6 digital outputs
c) 2 digital inputs, 4 digital outputs
d) 2 analog outputs
e) 2 analog outputs and 2 digital outputs
f) 4 analog outputs
g) 4 analog outputs and 2 digital outputs

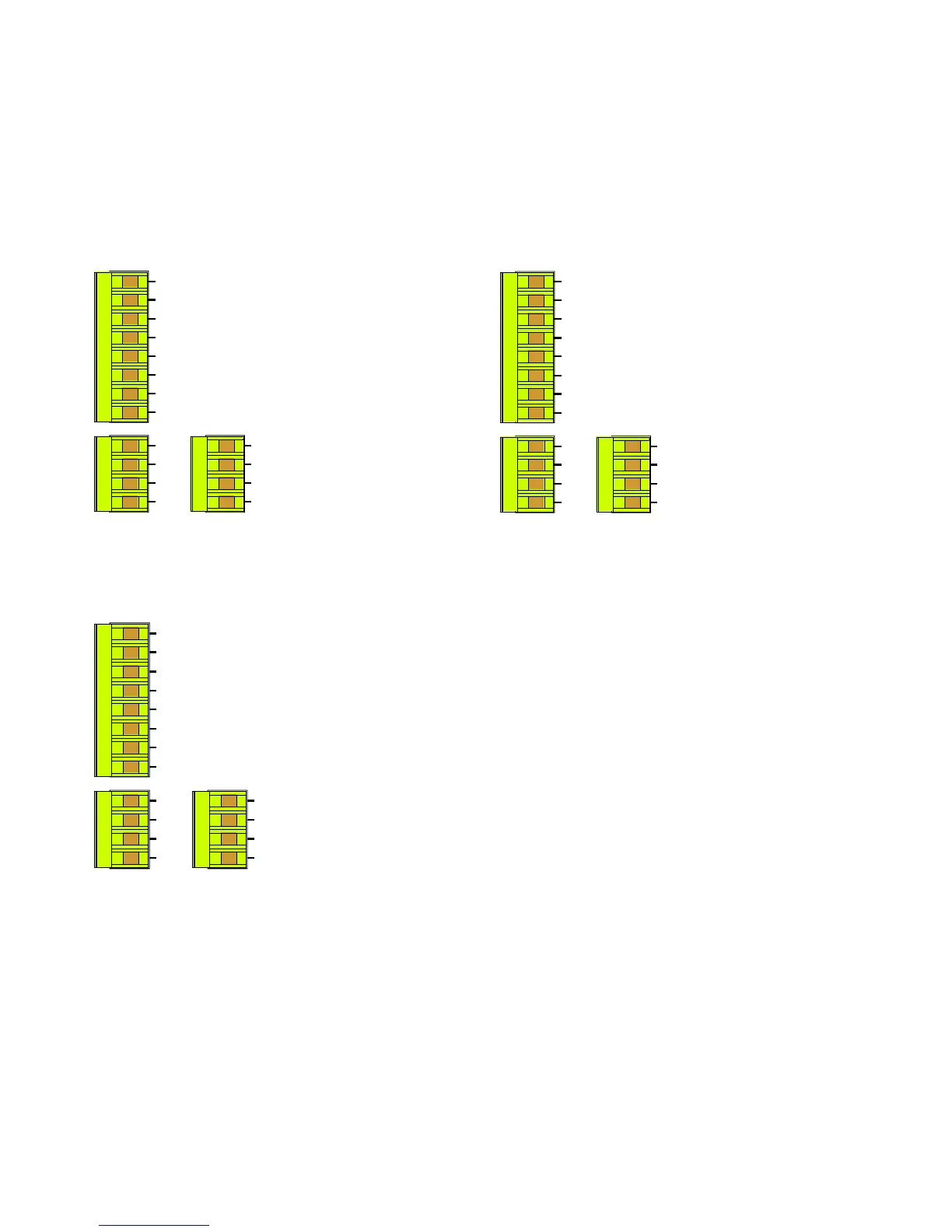

4 digital inputs and 2 digital outputs (option)
With this option the instrument will be equipped with:
- 4 digital inputs
- 4 pulse / state digital outputs.
6 digital outputs (option)
With this option the instrument will be equipped with 8
digital outputs divided in the following way:
- 4 digital outputs
- 4 pulse / state digital outputs.
2 digital inputs, 4 digital outputs (option)
With this option the instrument will be equipped with:
- 2 digital inputs
- 2 digital outputs
- 4 pulse / state digital outputs.
