EMS-96 Instruction Manual IM1200-U v1.6 Pag. 47 / 48

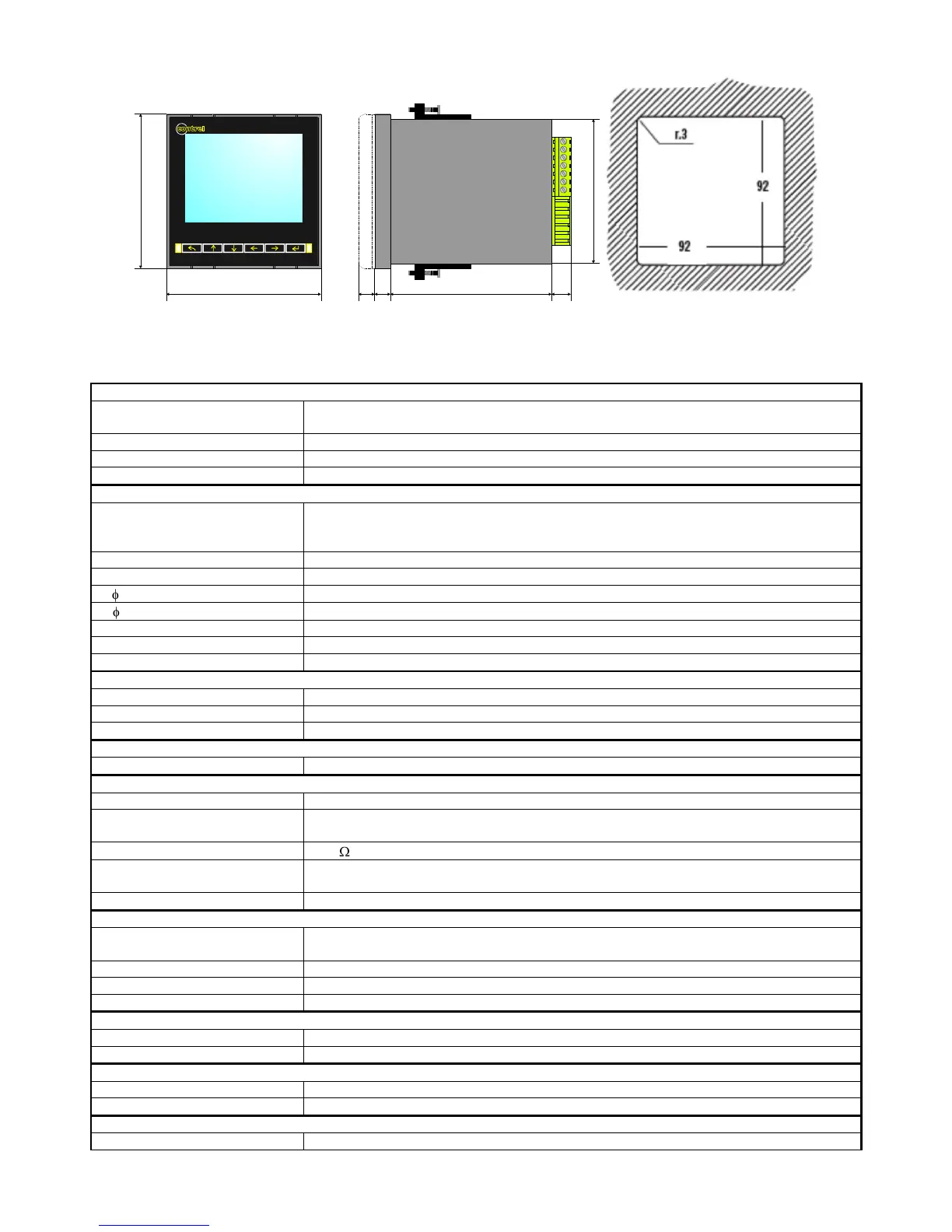

Dimensions
For fixing the flush mount version instrument to the panel,
use the fixing devices supplied, by inserting them in the side
groves of the enclosure and tighten the screws.
For safety reasons, place an external fuse protection at the
input voltages, and use adequate cables for the working
voltages and currents, with a section from 0.5 to 2.5 mm
2
.
Technical features
90÷250 Vac/dc
20÷60 Vac/dc
8VA max – 1VA min (depending on the options and activities)
Factory Default: CEI EN 62053-21 compliant – Class 1 (1%)
CEI EN 62053-22 compliant – Class 0.5 S (0.5%)
CEI EN 62053-22 compliant – Class 0.2 S (0.2%)
Up to 20
th
Harmonics – IEC62053-22
Once per second (all measures)
30÷400VAc phase to neutral (52÷693 Vac phase to phase)
10mA÷1A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)
50mA÷5A (for 1, 0.5S or 0.2S Class accuracy, depending on the option)
low and medium voltage - single phase connection - three phase with neutral - three phase without neutral
480 Vac phase to neutral (830Vac continuous phase to phase)
Over-voltage category: III (permanent installations)
50/60 Hz
Note: V1 terminal must be connected
Load (Burden) for each input
3 inputs isolated by internal current transformers
additional input for neutral current with the same characteristics to the phase inputs
Maximum continuous overload 1A
Maximum continuous overload 5A
Load (Burden) for each input
