Commander SE User Guide
Issue Number 5 35
6 Handling and Programming
6.1 Display and keypad
The display and keypad are used for the following:
Displaying the operating status of the Drive
Displaying fault or trip codes
Reading and changing parameter values
Stopping, starting and resetting the Drive

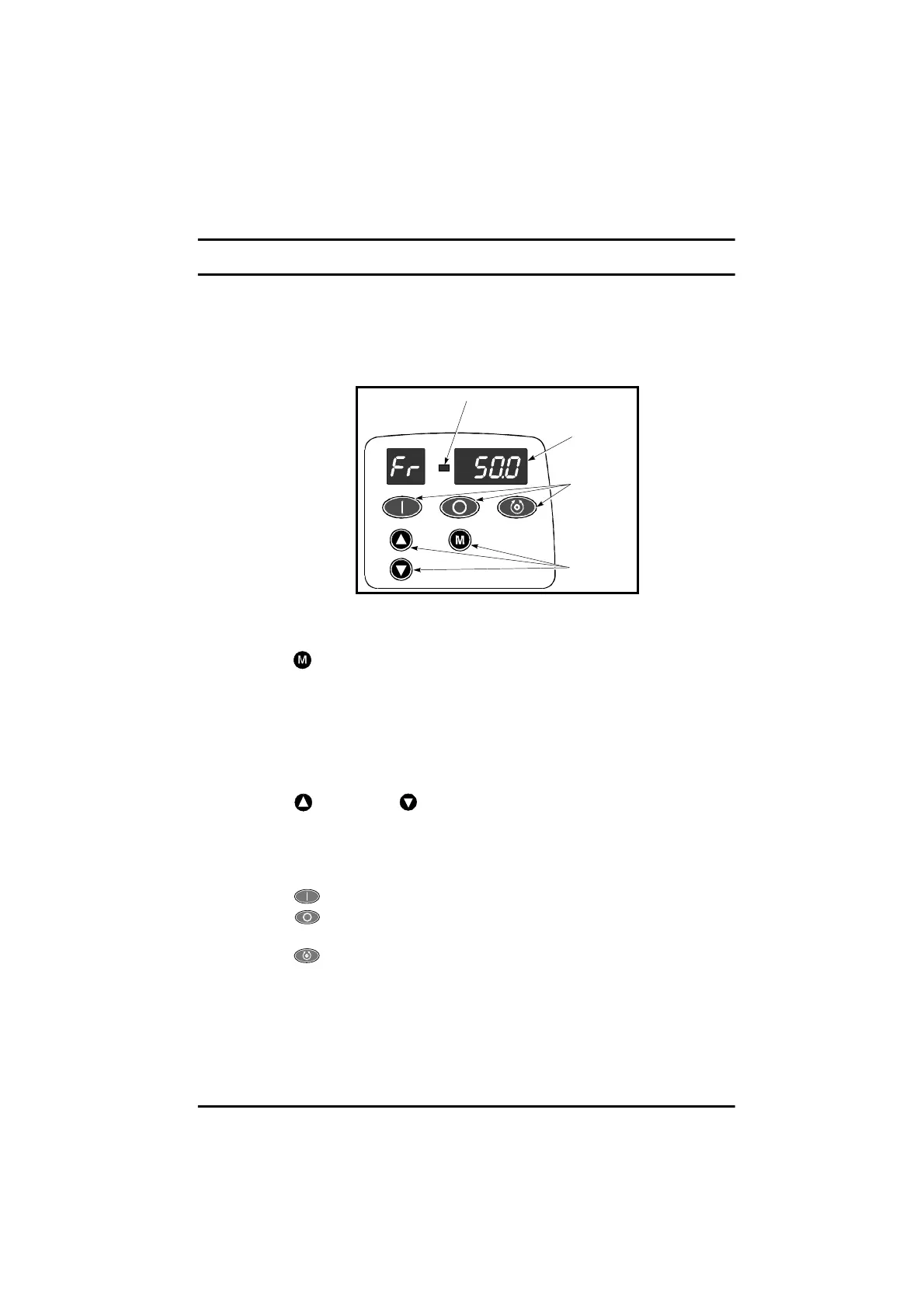

Figure 6.1 Display and Keypad (as seen when the AC supply is connected to the
Drive)
6.1.1 Programming keys
The MODE key is used to change the mode of operation of the display.
If the MODE key is pressed and then released within 2 seconds, the display will
change from Status Mode to Parameter View Mode.
If the MODE keyispressedandhelddownfor2secondsthentheStatusModewill
change from speed indication to load indication and vice versa. See Parameters 22
and 23.
The Drive will remember the displayed units on power down (speed or load) such that
the same units are presented on the next power up.
The INCREASE & DECREASE keys are used to select parameters and edit
their values. Also, in keypad mode, they are used to increase and decrease the speed
of the motor.
6.1.2 Control keys
The RUN key is used in keypad mode, to START the Drive.
The STOP/RESET keyisusedinkeypadmode,toSTOP and RESET the Drive.
ItcanalsoresettheDriveinterminalcontrol.
The FORWARD/REVERSE keyisusedinkeypadmodetochangedirectionof
rotation of the motor (when parameter 26=On).
Sign LED
Display
Control Keys
Programming
keys
