Dinverter
A
User Guide
Issue code: d2au9
22

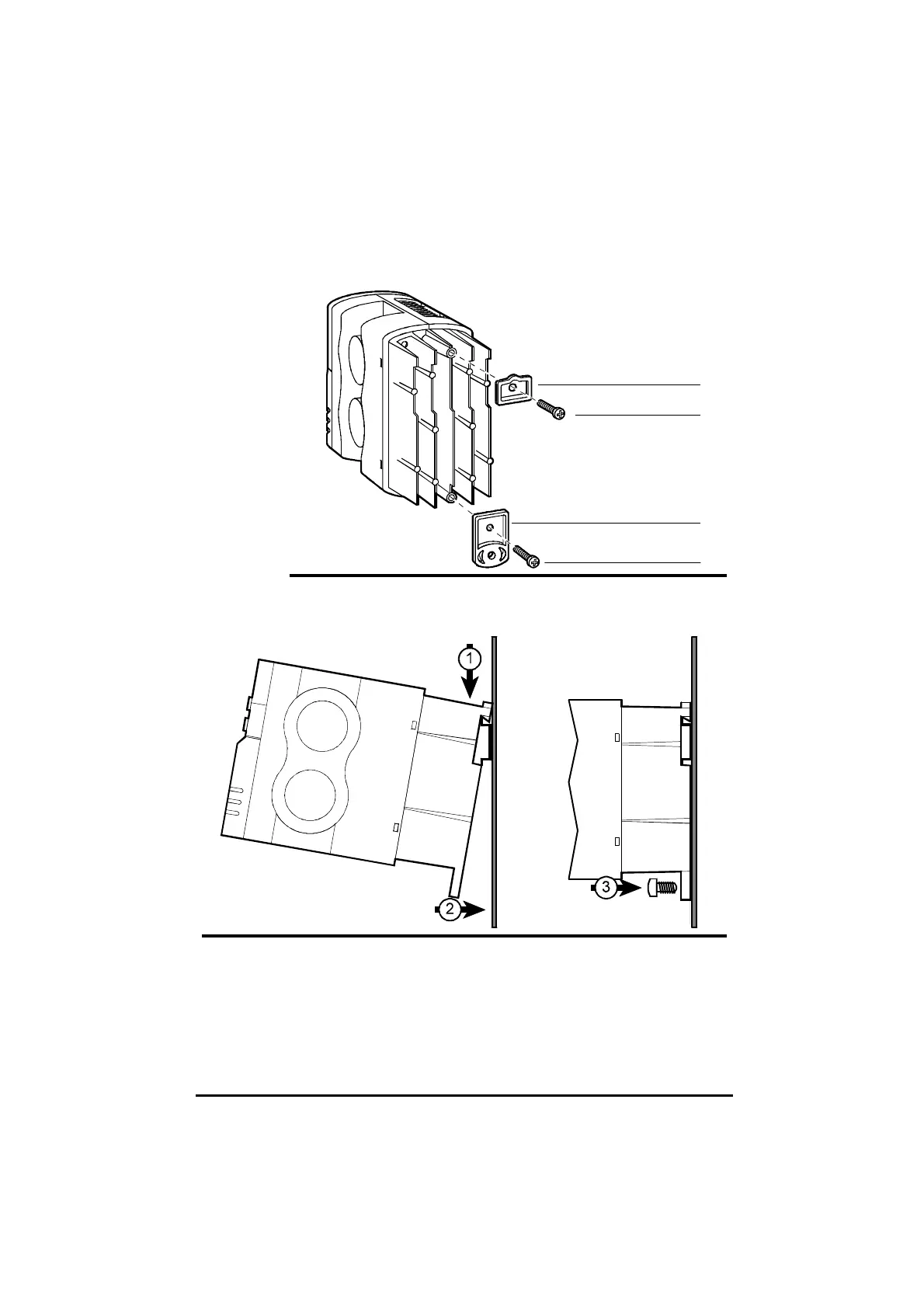

2 Fit brackets for DIN-rail mounting.
DIN-rail bracket
M4 Taptite screw
Surface-mounting bracket
M4 Taptite screw
3 Locate the Drive on a DIN-rail and secure the Drive to the back-plate
using an M5 (
3
/
16
in) screw.
DIN-rail
M5 ( /16 in)
3
