Connecting and setting up an RFI filter

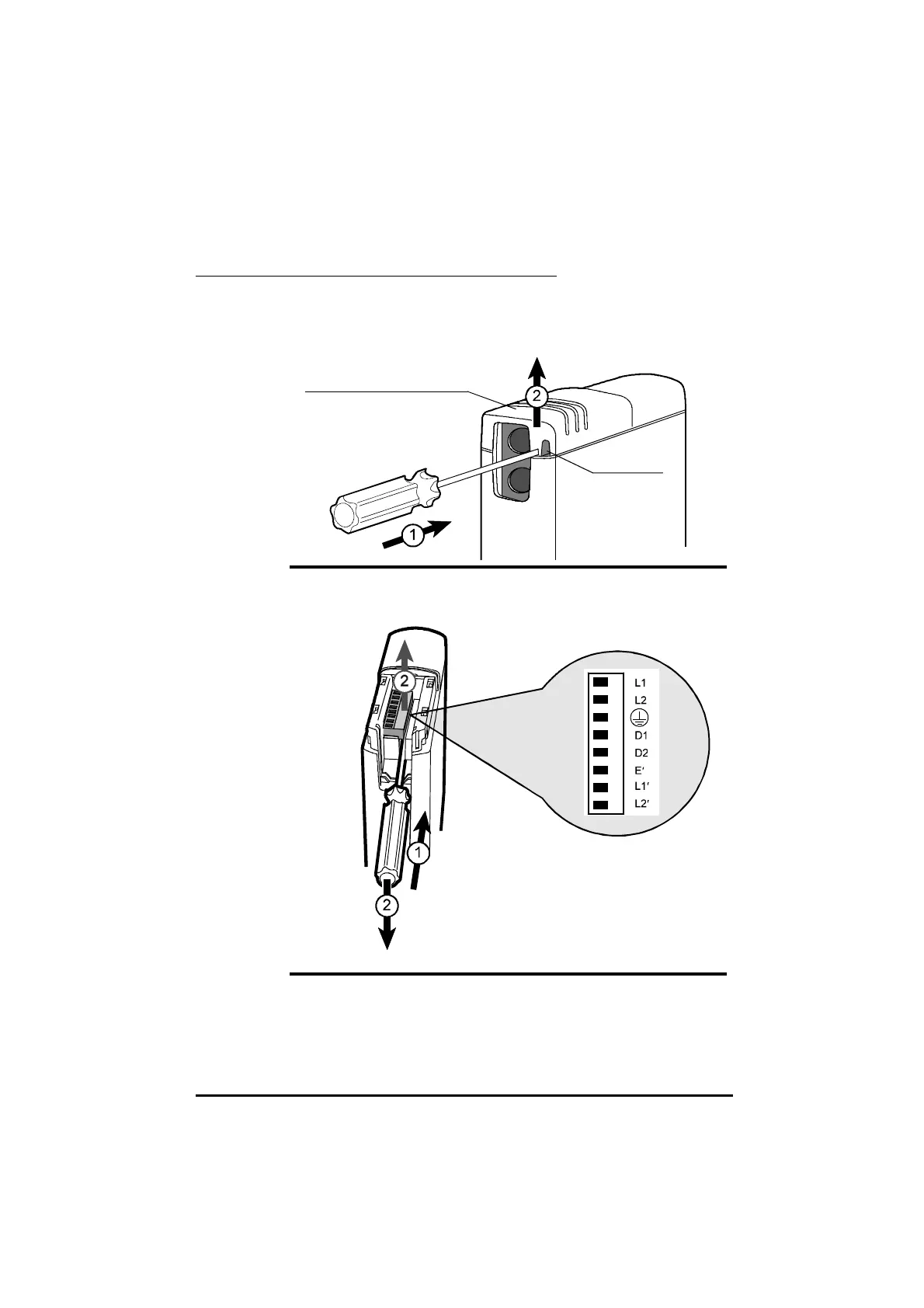

1 Use a 3mm flat-blade screwdriver to remove the terminal cover from
the RFI filter.
Terminal cover
Recess
3mm ( /
8 in)
screwdriver
1
Underside of the RFI filter
2 Use the screwdriver to lever the power connector from the terminal
chamber.
