capacitors in the Drive. If this causes the Drive to trip, the
Drive can be programmed to be reset automatically. In
this case, make a note to set parameter 10.34 at 1.
Table 4–3 Typical line-reactor values
Model Value
DIN1220025A 1.5mH
DIN1220037A 1.5mH
DIN1220055A 1.5mH
DIN1220075A 1.5mH
Current
ratings
Continuous: Not less than the continuous input current rating of the Drive
Repetitive peak: Not less than twice the continuous input current rating of
the Drive

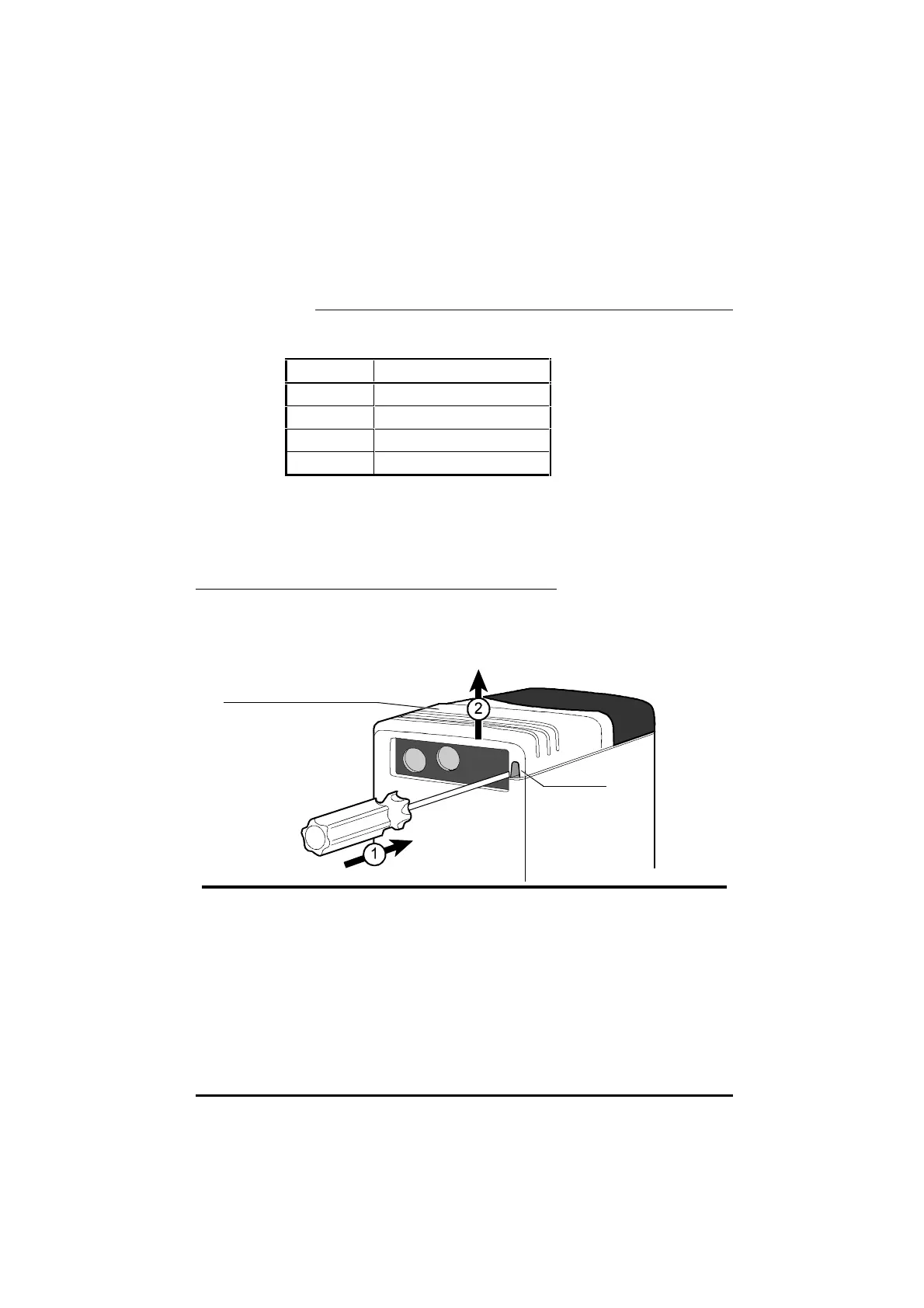

Working in the terminal chamber of the Drive
1 Use a 3mm flat-blade screwdriver to remove the terminal cover from
the Drive.
Terminal cover
Recess
3mm ( /
8 in)
screwdriver
1
Underside of the Drive
To Next Page
