Entering Parameter mode and returning to Status mode
1 Momentarily press . The display enters Parameter mode.
The display alternately shows a menu number and a parameter number.
The menu number displayed is
0., and the parameter number is .10, as
shown in Figure 5–2. A different parameter number could be shown if
the Drive has been used previously.
Menu number Parameter number

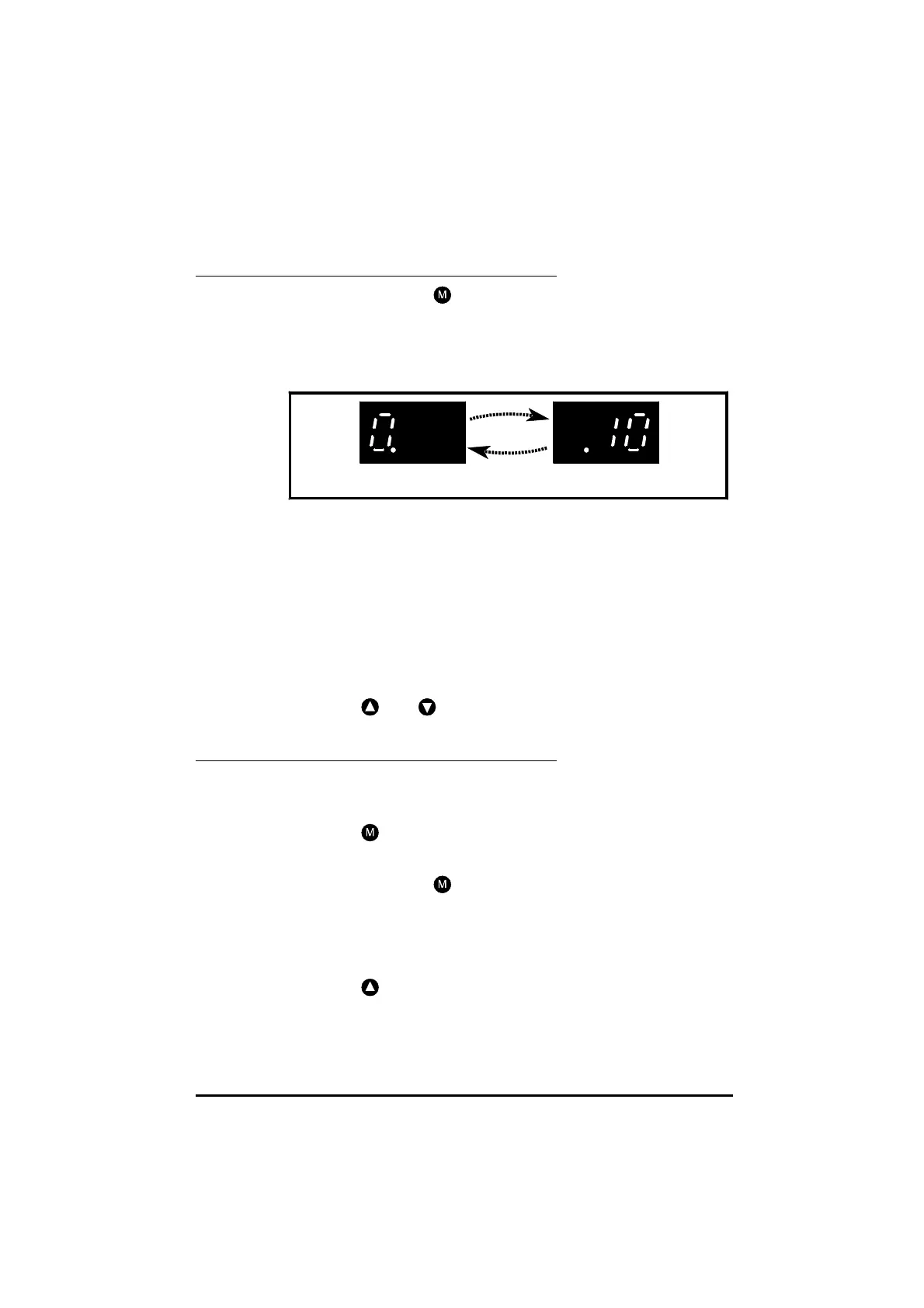

Figure 5–2 Display in Parameter mode
2 Do not press any keys. After eight seconds, the display returns to
Status mode. This shows that the display always returns from
Parameter mode to Status mode when no keys are pressed within
eight seconds.
You may repeat these two steps as many times as required to obtain an
understanding of the operation.
3 You can cause the display to return from Parameter mode to Status
mode without waiting eight seconds. Press the following keys at the
same time to return the display immediately to Status mode:
and
Selecting a parameter to access
If the display returns to Status mode during the course of selecting
parameters (because no keys have been pressed for eight seconds), to
re-enter Parameter mode, press:
The number of the last selected parameter will be displayed.
1 Momentarily press . The display enters Parameter mode.
The display alternately shows the menu and parameter number
as before.
2 Within eight seconds, and irrespective of whether the menu or
parameter number is momentarily displayed, momentarily press:
To Next Page
