Control Techniques M'Ax 403 User Manual

*
M’Ax User Guide 75
Issue Number: 4
9.11 Menu 13 parameters
Pulse reference selection and scaling

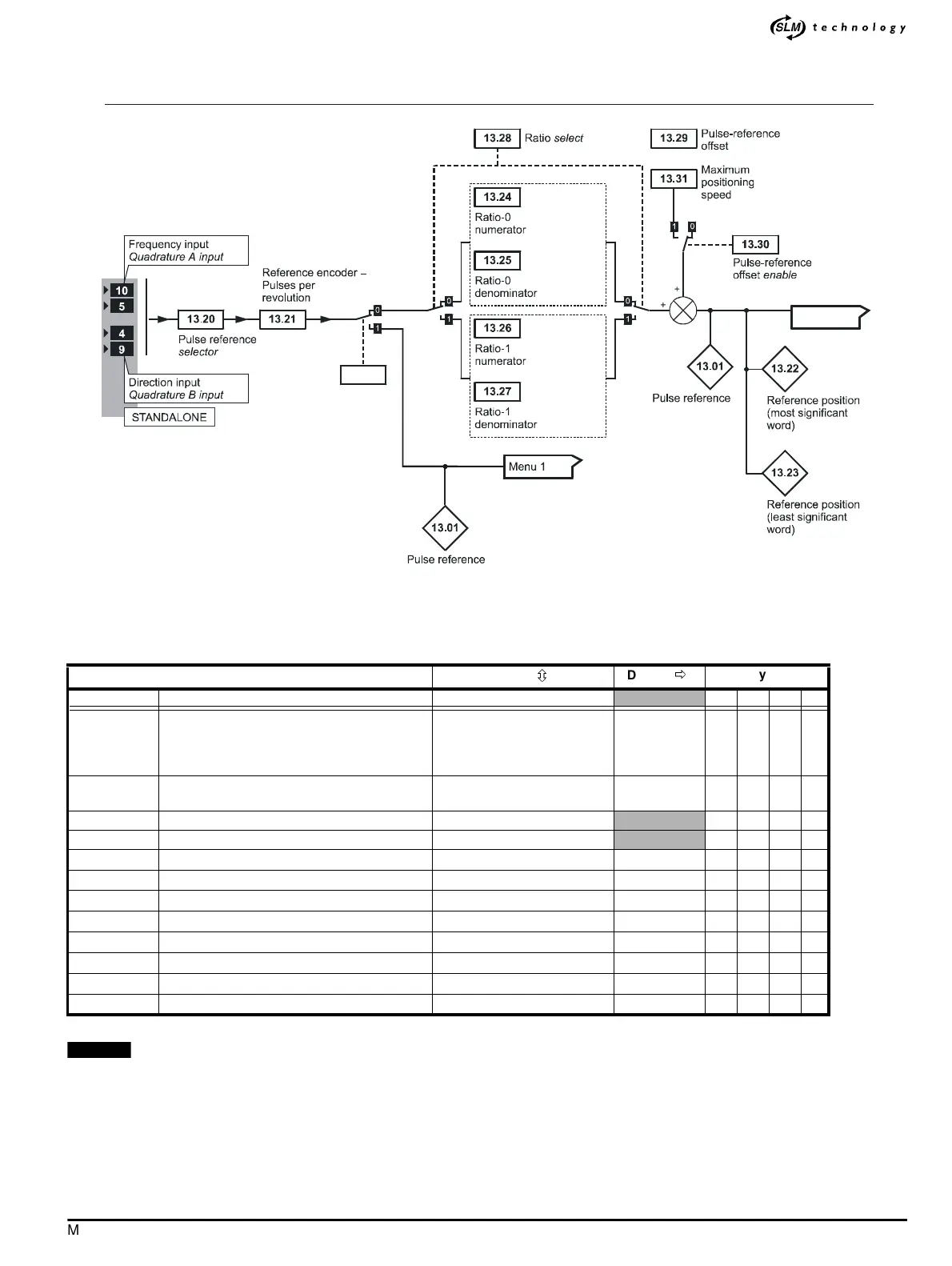

Software diagram for Menu 13
Below 100RPM use the following parameters for display purposes
only (1.01, 3.01 and 13.01). Use the speed feedback 3.02 for control
purpose if necessary.
2.02
Ramp
enable
Menu 3
Parameter
Range(
ô )Default( ð )
Type
13.01 Pulse reference ±7500 rpm RO Bi P
13.20 Pulse reference selector
0~2
0=F&D
1=Quad
2=PulsePulse
1
RW Uni
13.21
Reference encoder -
pulses per revolution
0 ~ 32767
4096
RW Uni
13.22 Reference position (most significant word) 0 ~ 65536
RO Uni
13.23 Reference position (least significant word) 0 ~ 65536
RO Uni
13.24 Ratio-0 numerator 0 ~ 65536
1
RW Uni
13.25 Ratio-0 denominator 0 ~ 65536
1
RW Uni
13.26 Ratio-1 numerator 0 ~ 65536
1
RW Uni
13.27 Ratio-1 denominator 0 ~ 65536
1
RW Uni
13.28 Ratio select 0~1
0
RW Bit
13.29 Pulse-reference offset ±32767
0
RW Bi
13.30 Movetooffsetenable 0~1
0
RW Bit
13.31 Maximum positioning speed 0 ~ 512
0
RW Uni
NOTE
