Convaid Cruiser - Planar Back Height Adjustments

32
PLANAR SEAT AND BACK
Planar Back Adjustments -
Cruiser, EZ Rider and Convertible
Adjust seat back height by removing/adding sections.
To remove a section:

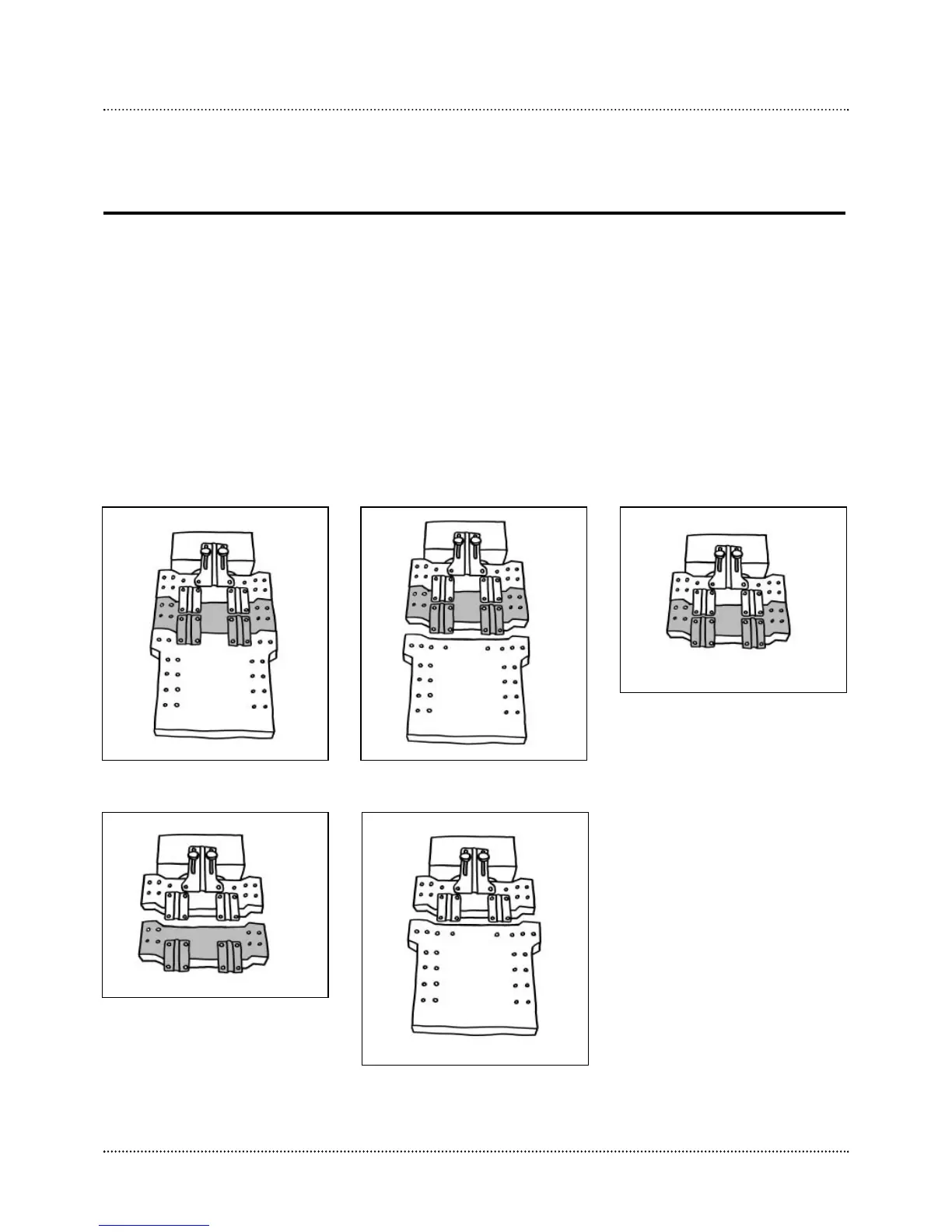

1. Using an Allen wrench, remove the bottom set of screws on the lower mounting plate
on the back of the unit. Fig. 112
2. Separate the upper section from the base. Fig. 113
3. Remove bottom set of screws from upper mounting plate. Fig. 114
4. Remove middle section. Fig. 115
5. Attach upper section to base section by re-inserting the screws as shown. Fig. 116
To add a section: Perform steps 1 – 5 in reverse order.
Fig.112
Fig.113
Fig.114
Fig.115
Fig.116
