6

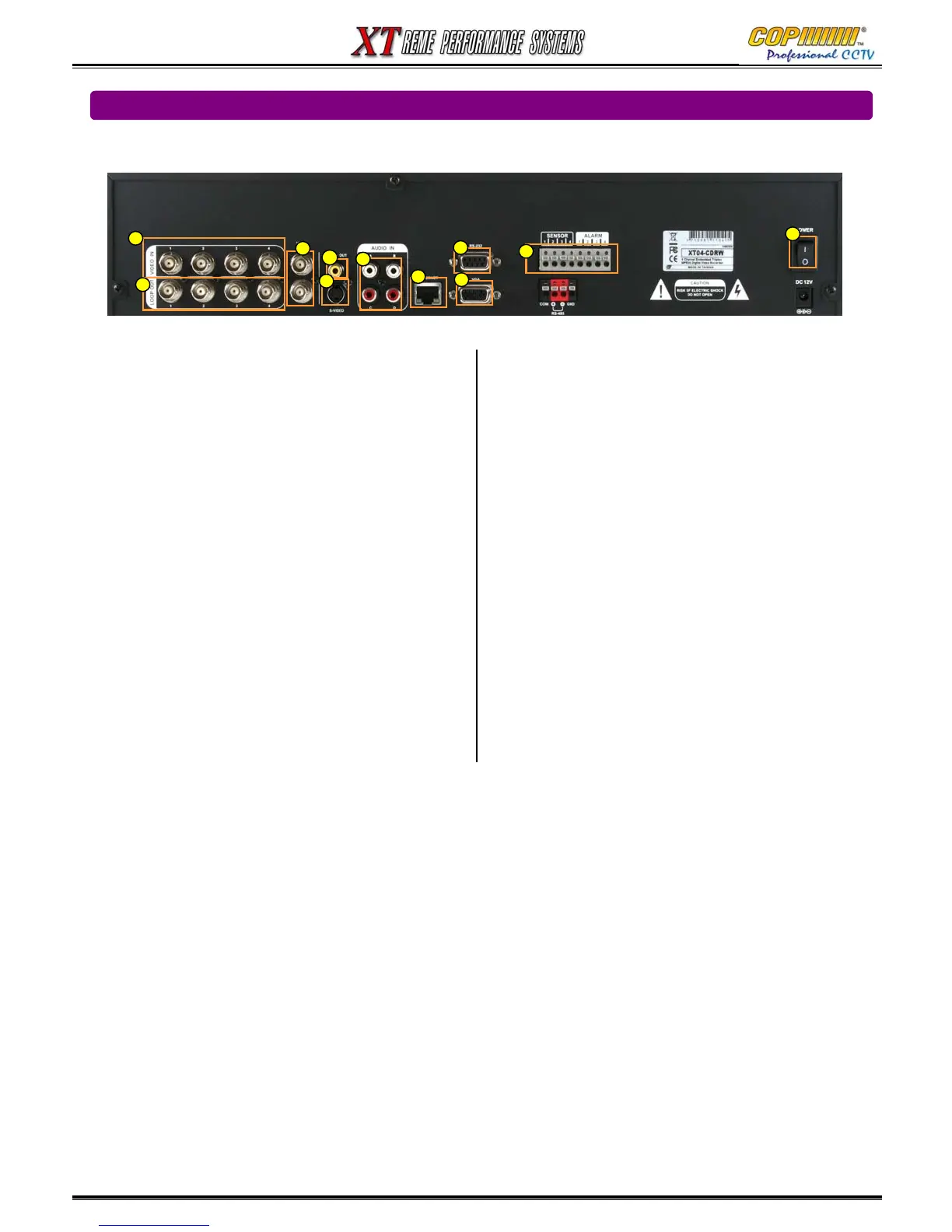

1-2 REAR PANEL
1
2
3
4
6
7
8
9
11
12
13
1. USAGE OF FUNCTION KEYS
1) Video Input
Composite video input – 16 BNC Female Sockets
2) Loop-Through Output Port
3) Audio Inputs
Four Audio Input Phono / RCA Sockets
4) Alarm Input, Alarm Output and Telemetry Connections.
“No-Tools” connectors for Alarm and Telemetry cables.
6) Main Monitor Output – 2 x BNC
Composite Video Output – Two BNC Female Socket.
7) Main Monitor Output - S-VIDEO
S-Video Output – One 5-Pin DIN Socket
8) Audio Output
One Audio Output Phono / RCA Socket
9) Ethernet Port:
RJ45 Socket for connection to a LAN Network Device.
11) Main Monitor Output - VGA
VGA Video Output – One 15-Pin D-Type Socket.
12) RS-232
Connection Port for Engineering Use Only.
13) Power Switch
System Power On/Off Switch.
