ProLine 124-221-321-324 Operator manual 137
UK
10.2. HSU 24
10.2.a. Installation

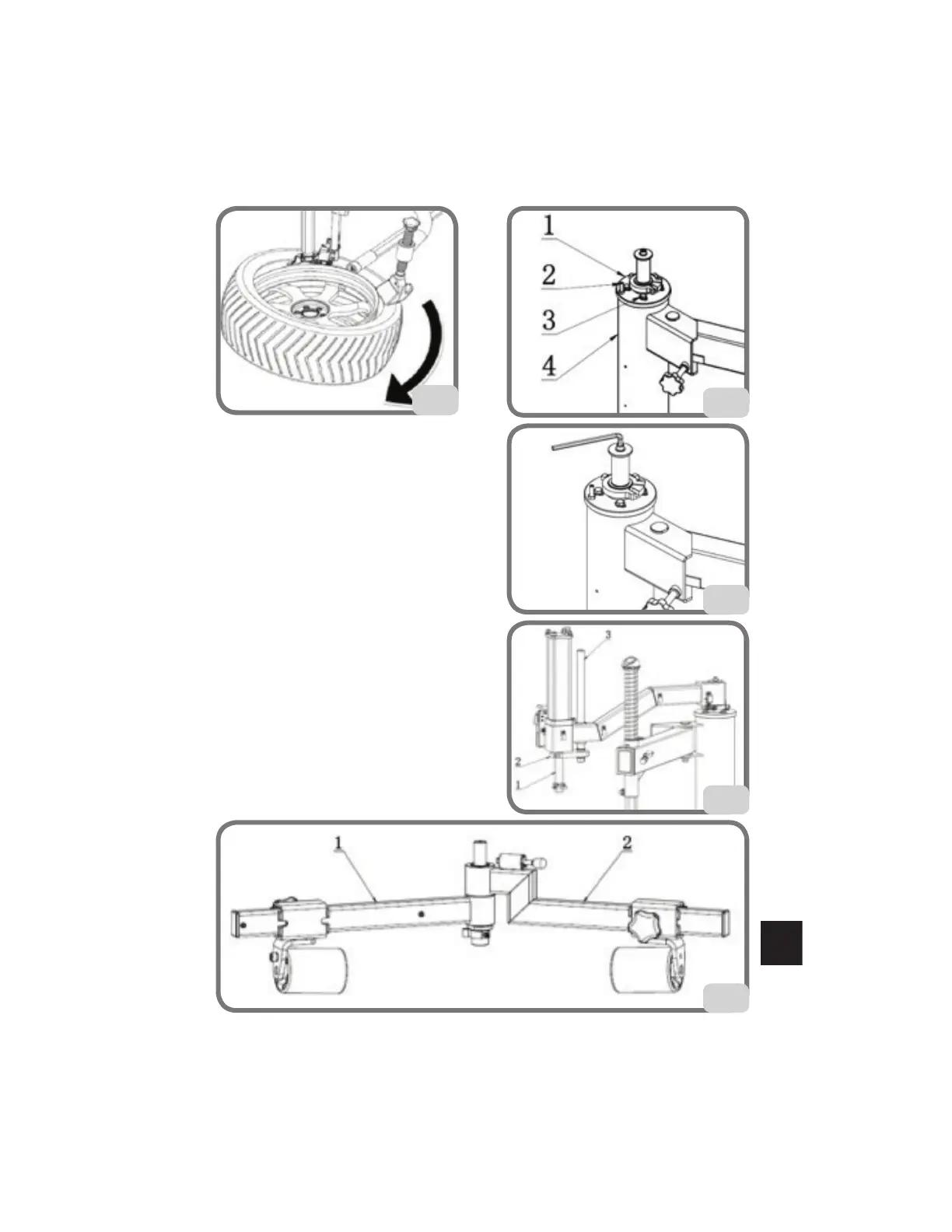

- Install the fixed base 1 (Fig. 54) on the top of
the pole, install the limit switch 2 as shown
in fig. 54. Install the 4 screws and M12x40
washers (do not tighten them completely)
- Remove the washer on the fixed base (fig.
55)
- Install arm 1 (Fig. 56) on the fixed base 2 and
tighten with the screw and washer previously
unscrewed.
- Remove the rotation shaft by releasing the
retainer 2 with a wrench (Fig. 56)
- Connect rotation arm 1 (fig.57) and fixed
arm 2 using the rotation shaft previously
removed. Pay attention to the position of
the arms when inserting the shaft into the
cylinder hole and fasten as shown in fig. 58
- Fasten the control box on the main arm side
53
54
55
56
57
