CRANK DRIVE / CRANKCASE / CRANKSHAFT CR-3
CYLINDER HEAD

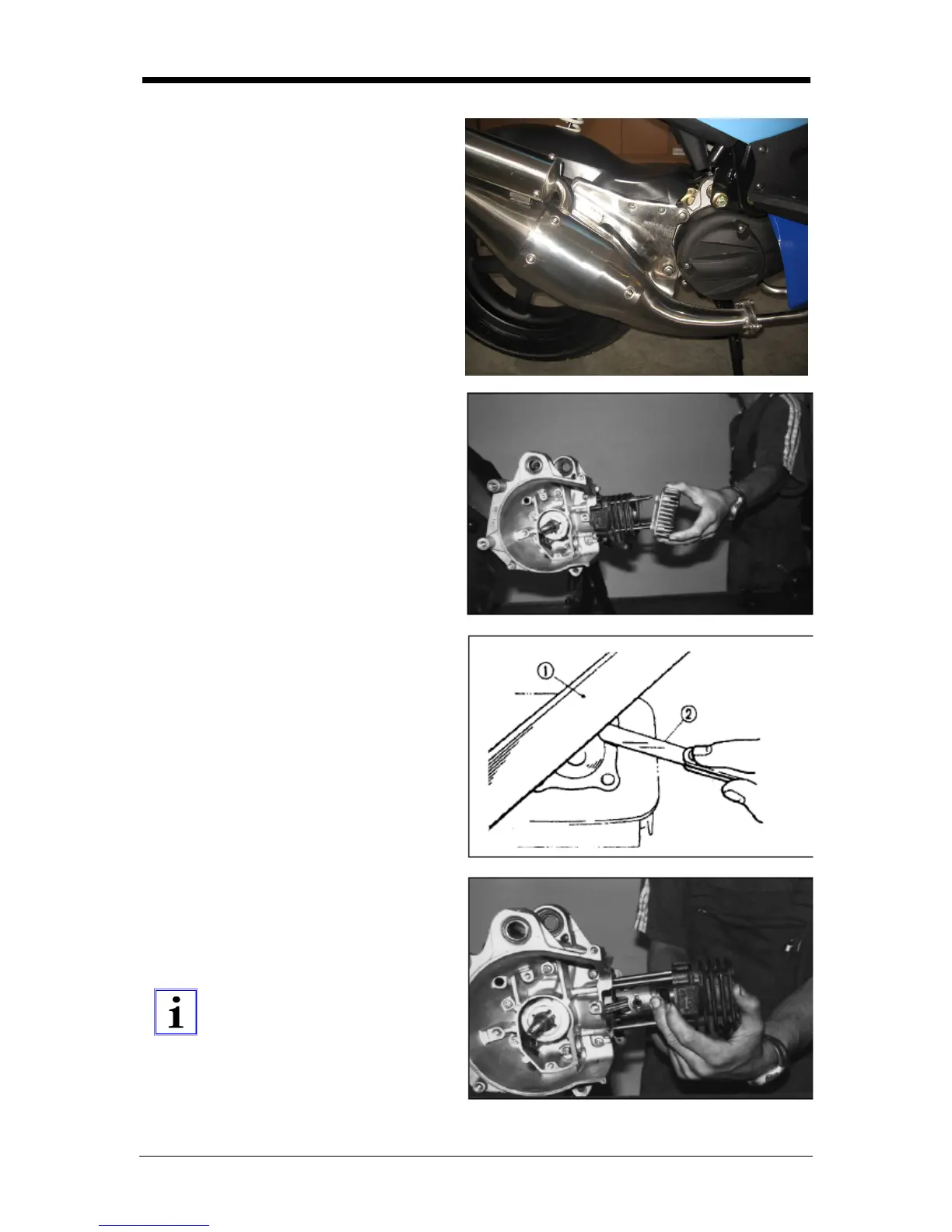

DISASSEMBLY
Remove the helmet box and the seat.
Remove the spark plug connector.
Remove the muffler.
Remove the carburetor and the air filter body.
Remove the fan covers.
Remove the spark plug.
Loosen the cylinder head nuts.
Remove the cylinder head.
Check the mating surfaces of the cylinder head
with a straightedge for warpage.
Limit value: 0.05 mm
CYLINDER DISASSEMBLY
Remove the cylinder head.
Remove the cylinder.
Remove he cylinder base gasket.
The gasket surfaces shall be
properly cleaned prior to
reassembling.
