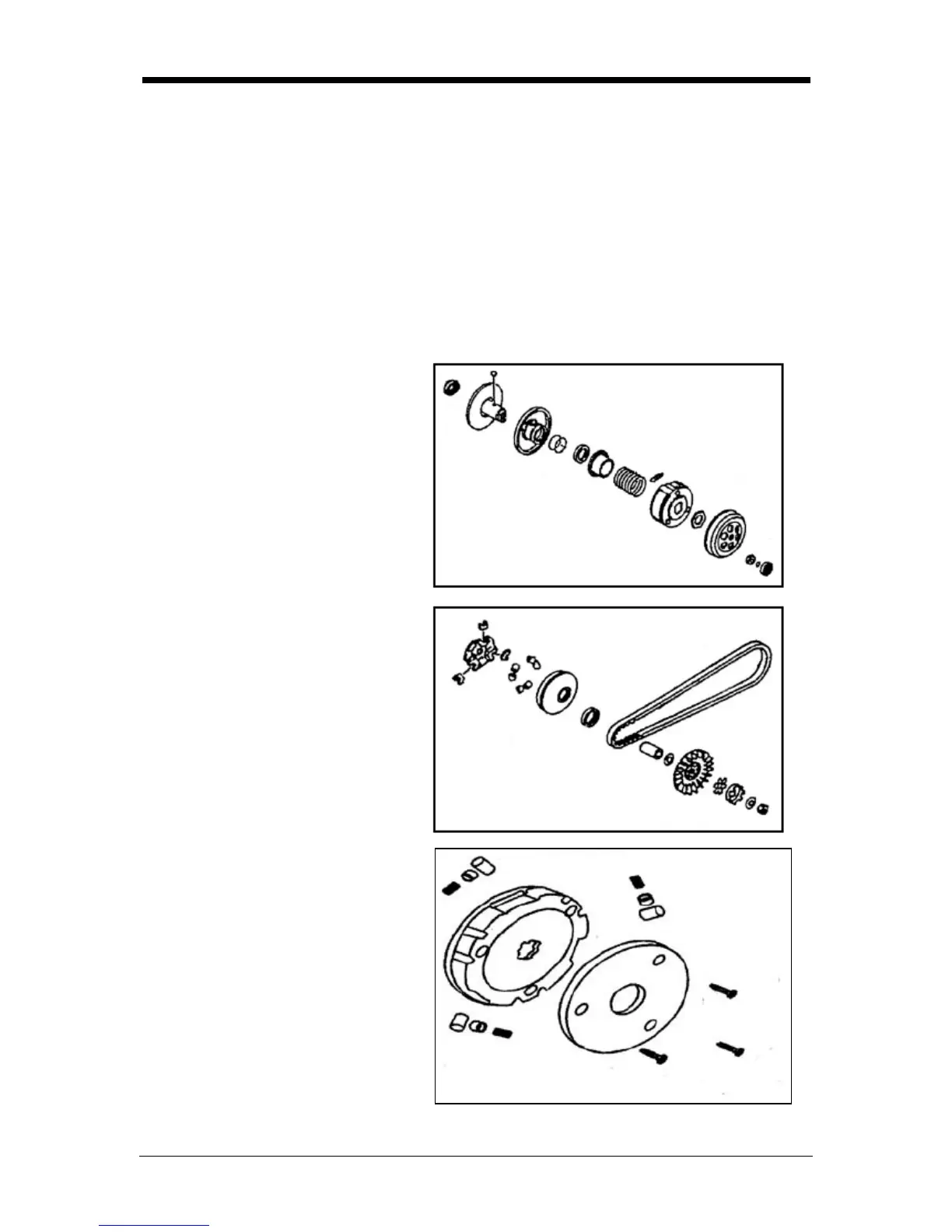

VARIOMATIC TRANSMISSION VT-3
LEFT ENGINE CASE
COVER AND BELT-DRIVE
REMOVAL
Remove the engine case cover and the
bushings.
Loosen the securing nut of the centrifugal
clutch and remove the entire clutch
together with the V-belt.
Torque: 35 – 40 Nm
Special tool: ACC-ST8362070
Loosen the securing nut of the
continuously variable belt transmision
system and remove the variomatic
transmission unit.
Torque: 35 – 40 Nm
Special tool: ACC-00005253240
Remove the overrunning clutch and the
spacer sleeve.
