VARIOMATIC TRANSMISSION VT-7
CLUTCH SHOE UNIT.

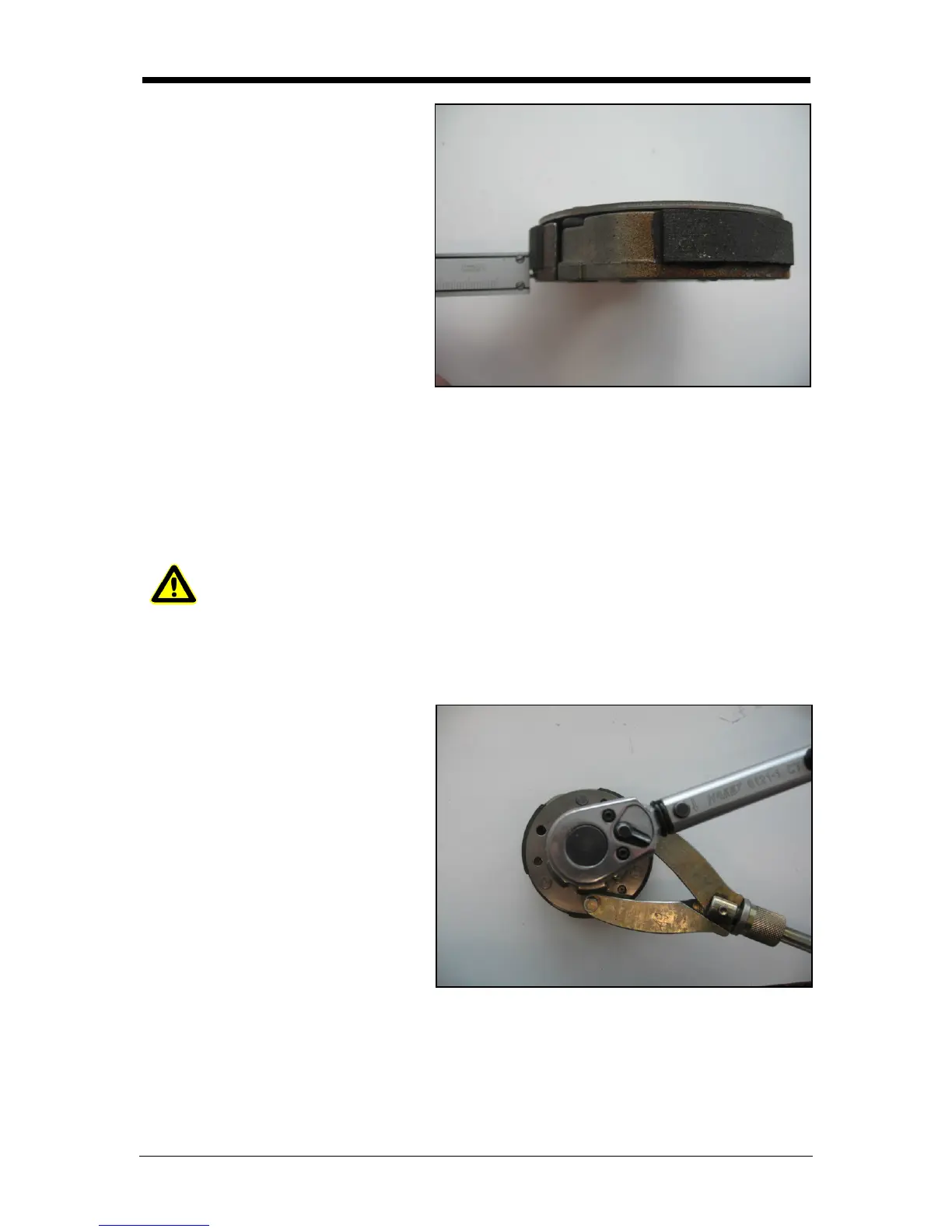

Measure the breadth of the clutch lining.
Wear limit: 1.5 mm
Check whether the linings adhere to the
clutch and make sure they do not come
loose.
Check the individual clutch shoes for free
movement. They shall not get jammed or
stuck.
Check whether the rubber stop pins are
available.
Check the stop pins for wear, crackings
or aging.
DISASSEMBLING THE
CLUTCH UNIT
When disassembling the clutch
unit make sure that all components are
adequately cleaned. This will ensure
that they can be properly measured.
Fix the clutch unit with a specially
designed tool.
Loosen the 38 mm clutch nut.
Release the clutch spring and dismantle
the clutch.
Special tool: ACC-00005253240
