ELECTRICAL SYSTEM ES-5

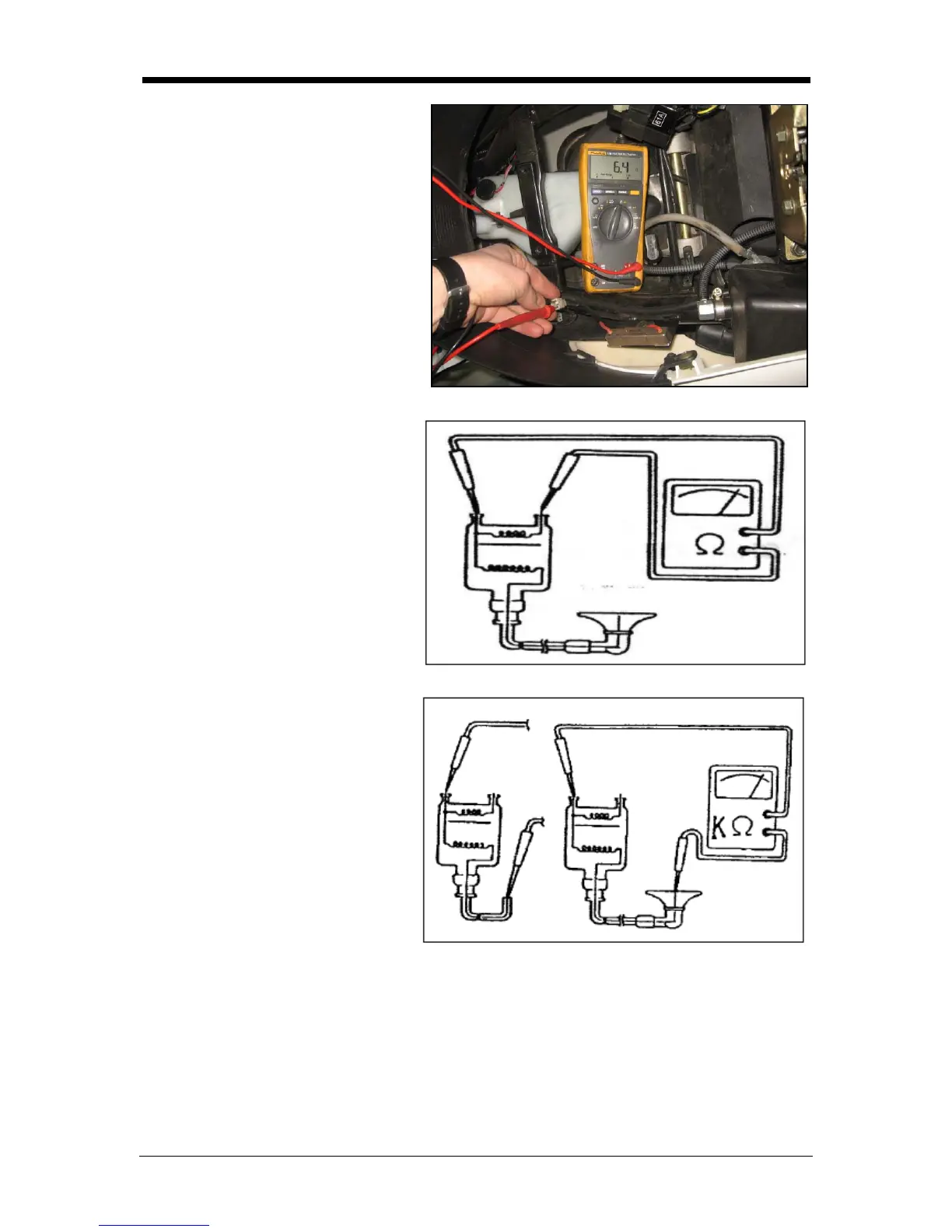

RESISTANCE CHECK
(DUMMY CONSUMERS)
Measure the resistance against ground.
Desired value: 6.4 ± 0.2 Ω at 20°C
ambient temperature
IGNITION COIL
Measure the primary coil winding with
an ohmmeter.
Desired value: 0.4 ~ 0.6 Ω at 20°C
ambient temperature
Measure the secondary coil winding
with an ohmmeter.
Desired value at 20°C ambient
temperature:
With spark-plug connector: 10 ± 1
kΩ
Without plug connector: 3 ± 0.5 kΩ
