Handle Assembly Inspection
Inspect the handle assembly monthly for wear.
1. Set Handle in BS position
2. Loosen 5/32” in Allen head hex screw on side of
guide tube ONLY until handle is free. Do not
remove screw.
3. Pull Handle away from guide tube.
4. Check beveled front edge of handle latch for
excessive wear.

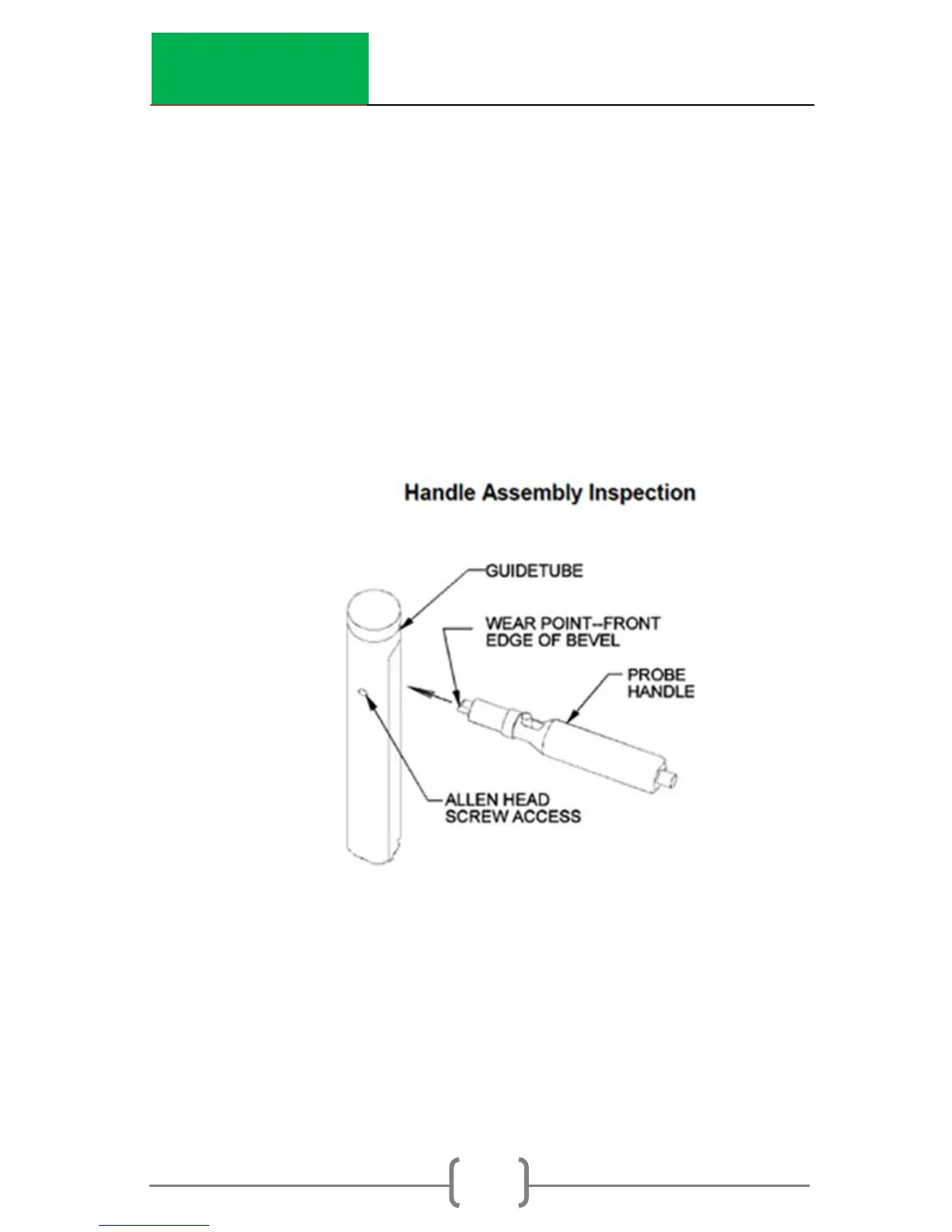

Fig. 8.1
5. Check notches inside guide tube for excessive
wear.
