CPS SCA25KTL-DO/US-208 - Page 134

128
2. Use a No. 3 Phillips head screwdriver to unscrew the 2 screws on
both sides of the inverter.

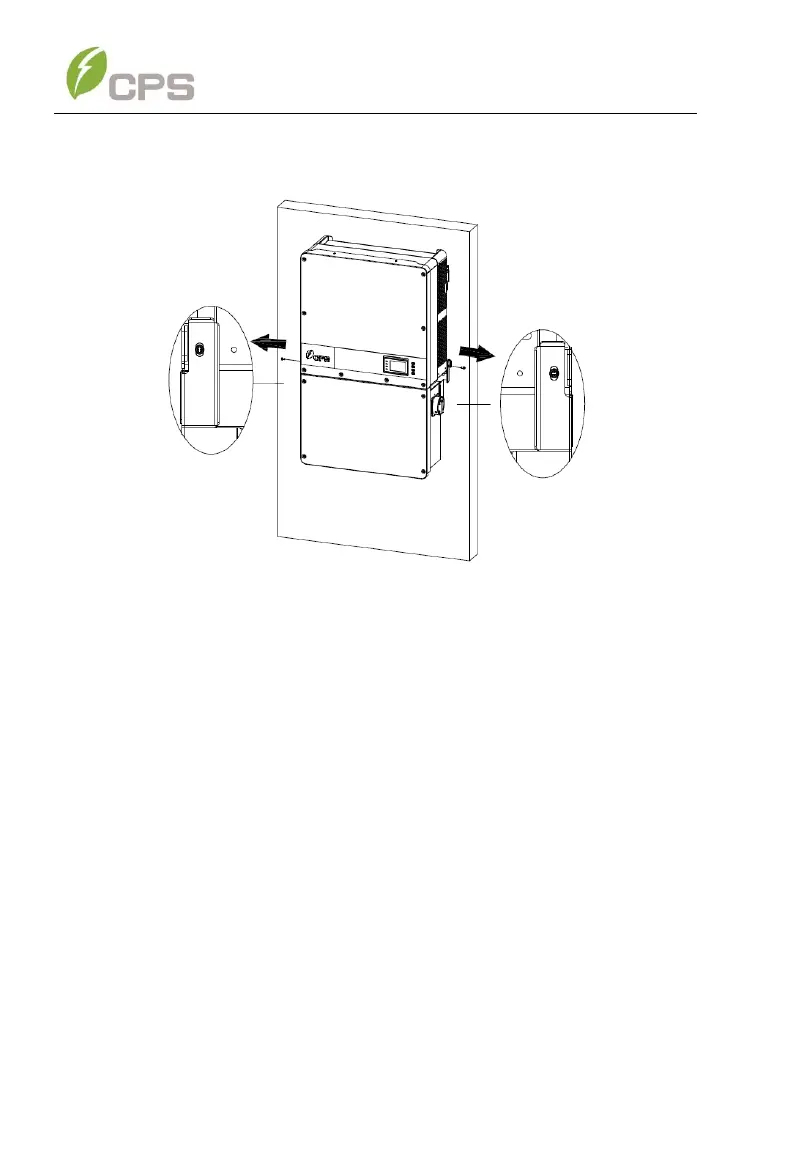

Figure 8-3 Remove the screws on both sides
3. Use a No. 10 Hex wrench to remove the 4 screws between the inverter
and the wiring box. Lift the inverter enclosure and disconnect from the
wiring box.
