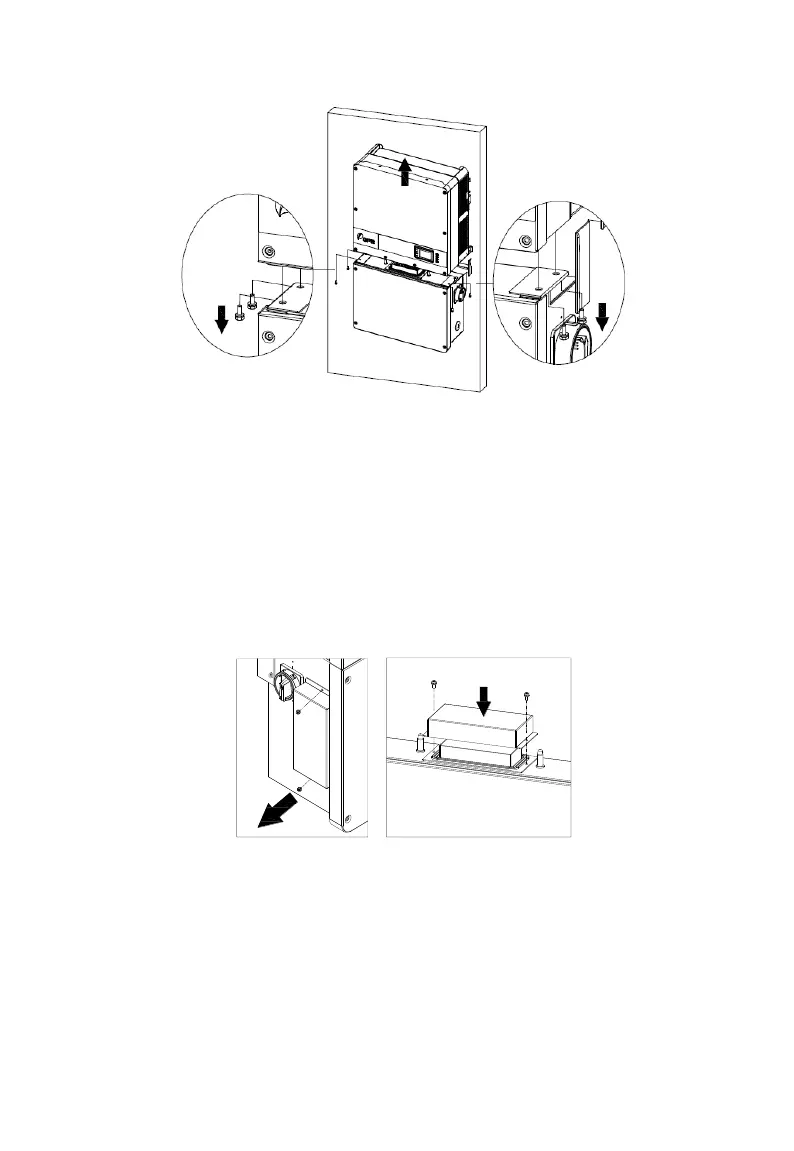

Figure 8-4 Disconnect the main housing from the wiring box
4. If the replacement inverter is on hand and to be installed immediately,
skip this step and refer to section 3.2 for installation of the inverter.
Otherwise, use a No. 2 Phillips head screwdriver to remove the 2
screws on the left side of the wiring box, and remove the bulkhead
cover. Attach the cover on the connector of wiring box. Torque value:
1.6N.m (14.2in-lbs)
Figure 8-5 Install the cover on the connector of the wiring box
The cover connector does not provide a watertight seal – if inverter
replacement is not immediately available, watertight integrity must be
maintained by method in addition to connector cover.
