The DC input connection diagrams for SCA25KTL-DO/US-208 inverters
are as follows:

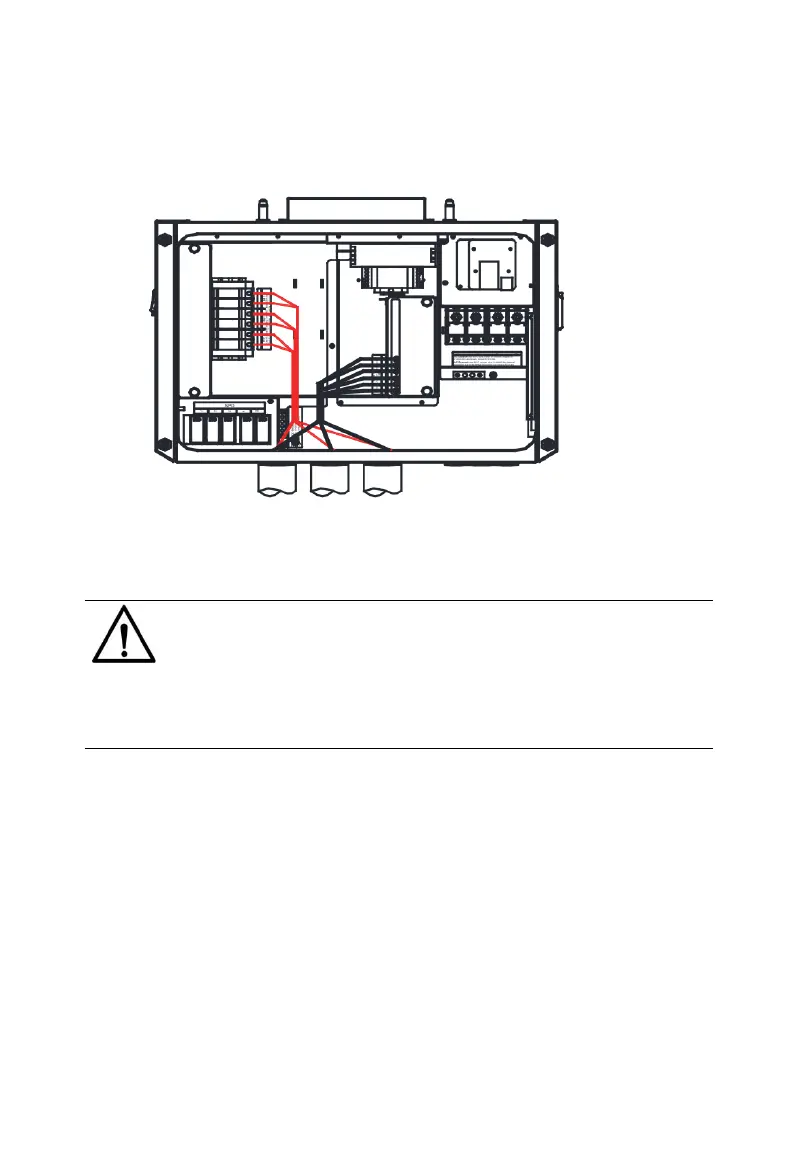

Figure 3-244 SCA25KTL-208V wiring box
Before terminating the PV conductors, verify connector specifications and
always verify polarity to avoid risk of reverse polarity.
NOTICE:
To maximize production, reduce clipping losses, and optimize thermal
performance, the DC input power should be distributed across all
MPPTs as evenly as possible (e.g. difference in number of strings per
MPPT not larger than 1).
