54

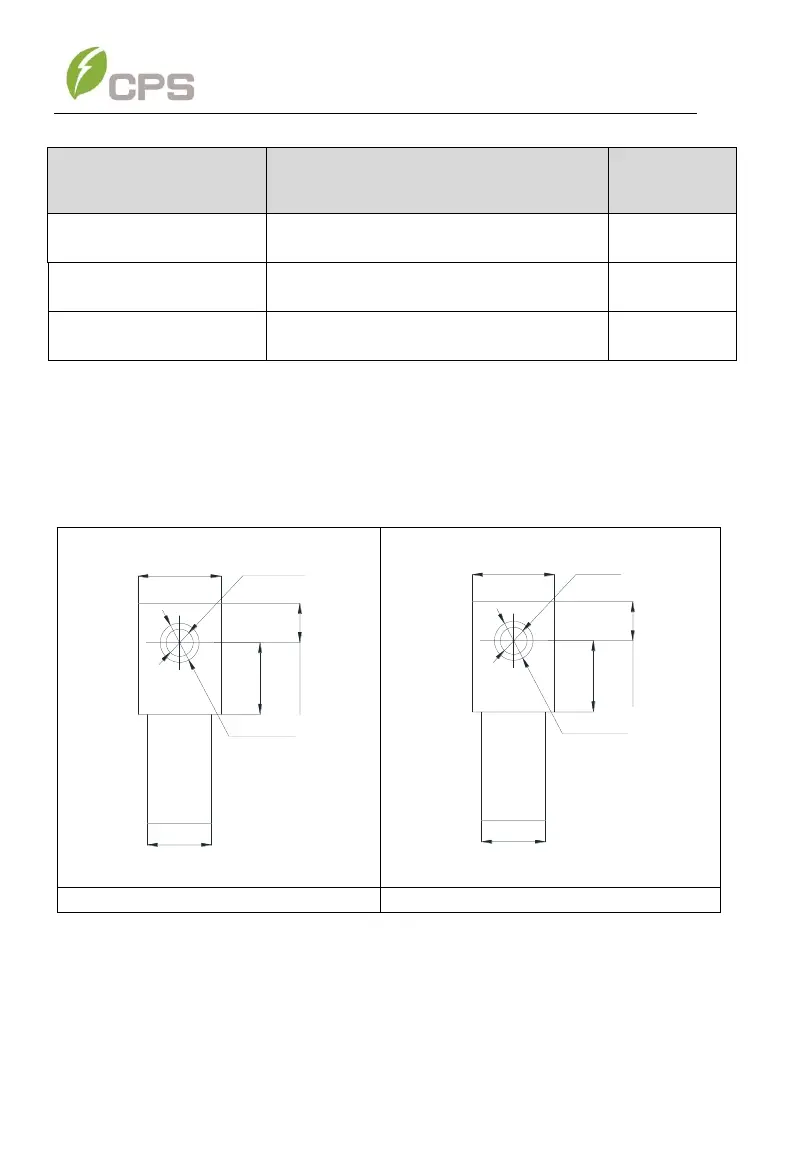

Table 3-8 Torque and Conductor Specifications
Connection Point
Conductor Range
Torque
Value
AC output terminal block
L1/L2/L3/N: #6-3/0AWG (75/90℃
CU/AL)
14.2 N-m
(126 in-lbs）
Internal grounding bar
#6-4 AWG (CU/AL)
5.6 N-m
（50 in-lbs）
External grounding point
#6-4 AWG (CU/AL)
5.6 N-m
（50 in-lbs）
The AC Terminals are 90C rated. The maximum acceptable conductor size
that may be terminated to the AC output terminal is restricted based on the
compression lug maximum dimensions shown in Figure 3-28.
15/16''(max) 5/16''(min)
7/16''(max)
3/4''(max)
13/16''(max)
1/2''(max)
24.5mm(max) 8mm(min)
11.5mm(max)
19mm(max)
21mm(max)
12.5mm(max)
Standard 1-hole Lug
Metric 1-hole Lug
Figure 3-28 Compression Lug (OT Terminal) maximum dimensions
