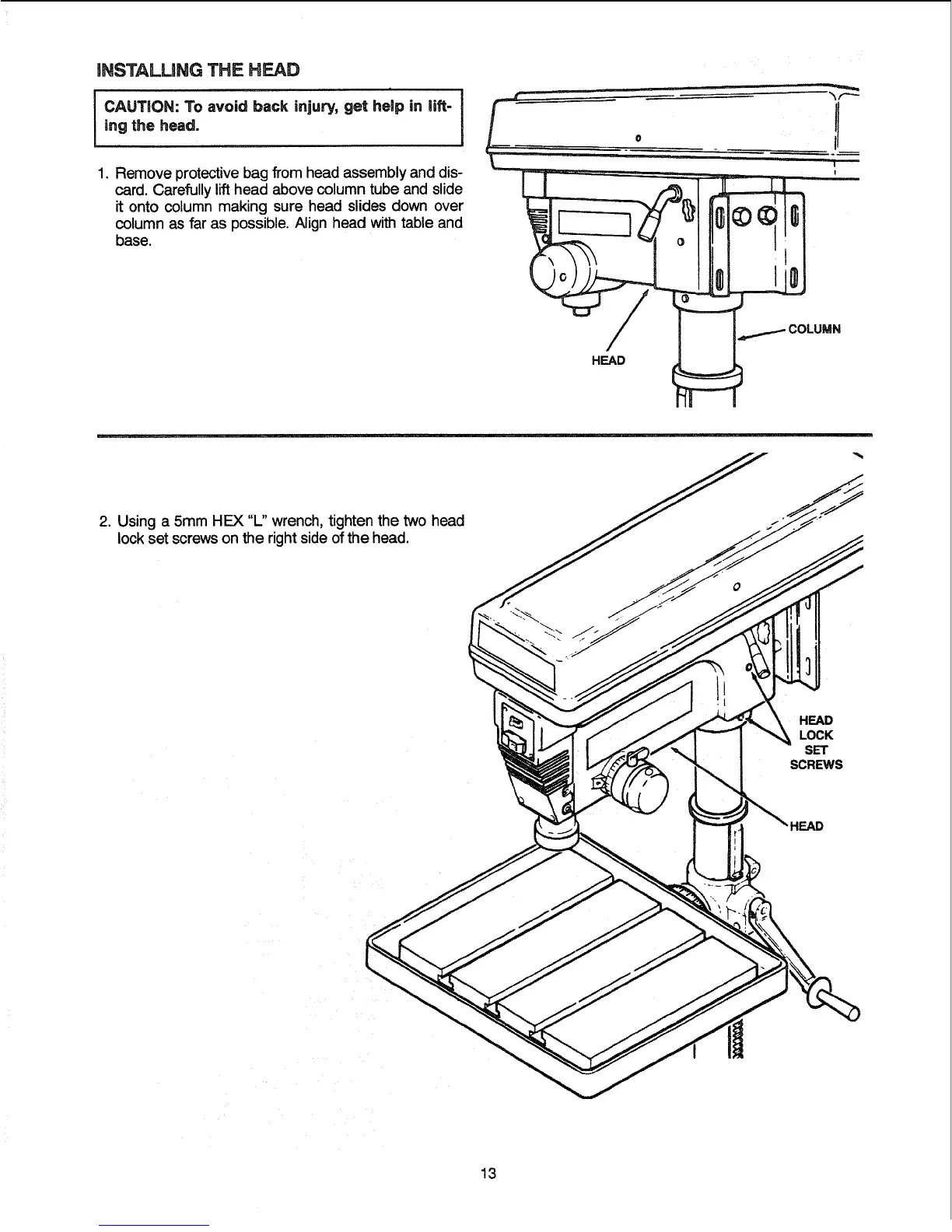

iNSTALLiNG THE HF_AD
CAUTION: To avoid back injury, get help in lift-
ing the head.
.... .L
1. Remove protective bag from head assembly and dis-
card. Carefully lift head above column tube and slide
it onto column making sure head slides down over
column as far as possible. Align head with table and
base.
2. Using a 5mm HEX "L" wrench, tighten the two head
lock set screws on the right side of the head.
HEAD
LOCK
SET
SCREWS
13
