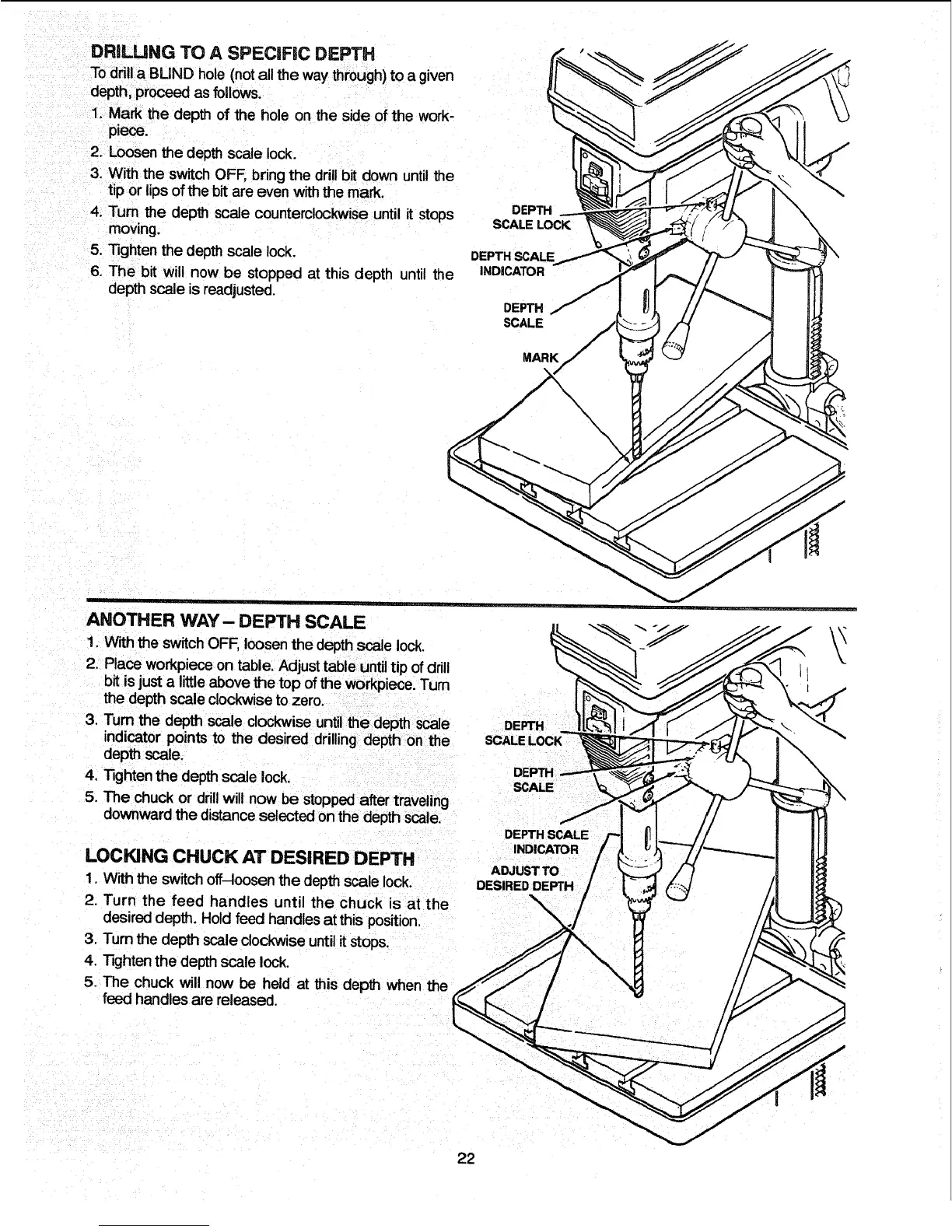

DRiLLiNG TO A SPECiFiC DEPTH
To drifta BLIND hole(notall the way through)to a given
depth,proceed as follows.
1. Mark the depth of the hole on the side of the work-
piece.
2. Loosen the depth scale lock.
3. With the switchOFF, bring the drillbit down untilthe
tip or lips of the bitare even withthe mark.
4. -rum the depth scale counterclockwise until it stops
moving.
5. Tighten the depth scale lock.
6. The bit will now be stopped at this depth until the
depth scale is readjusted.
DEPTH
SCALE LOCK
DEPTH SCALE
INDICATOR
DEPTH
SCALE
MARK
ANOTHER WAY- DEPTH SCALE
1. Wdh the switchOFF, loosenthe depthscale lock.
2. Place workpieceon table. Adjusttable untiltip ofdrill
bit is just a littleabove the top ofthe workpiece. Turn
the depth scale clockwiseto zero.
3. rum the depth scale clockwiseuntilthe depth scale
indicator points to the desired drillingdepth on the
depthscale.
4. Tighten the depth scale lock.
5. The chuck or drill will now be stopped after traveling
downward the distance selected on the depth scale.
LOCKING CHUCK AT DESIRED DEPTH
1. With the switch off-loosen the depth scale lock.
2. Turn the feed handles until the chuck is at the
desired depth. Hold feed handles at this position,
3. Turn the depth scale clockwise until it stops.
4. Tighten the depth scale lock,
5. The chuck will now be held at this depth when the
feed handles are released,
\
DEPTH
SCALE LOCK
SCALE
DEPTH SCALE
INDICATOR
ADJUST TO
DESIRED DEPTH/ /
22
