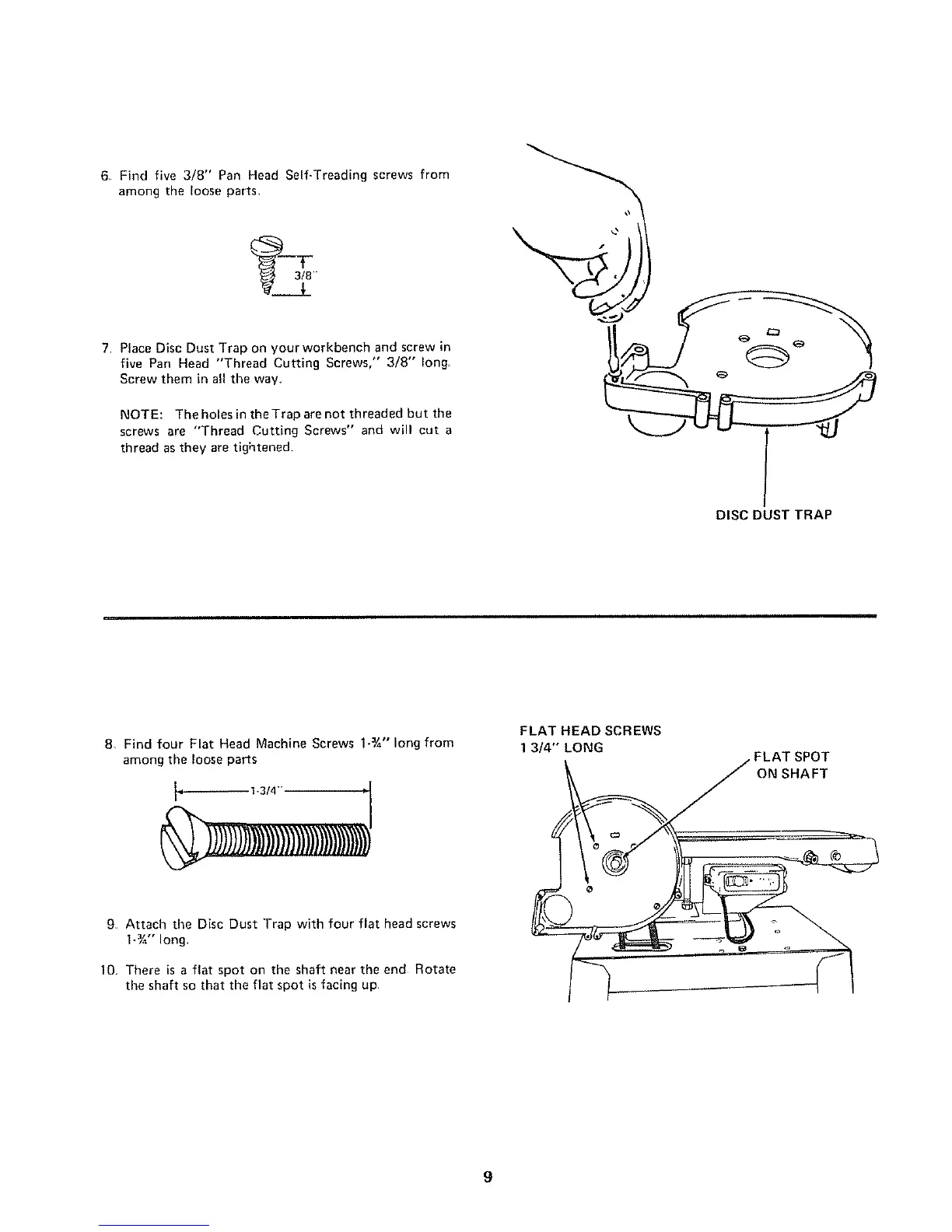

6, Find five 3/8" Pan Head Self-Treading screws from
among the loose parts,
7 Place Disc Dust Trap on yourworkbench and screw in
five Pan Head "Thread Cutting Screws," 3/8" long
Screw them in all the way
NOTE: The holes in the Trap are not threaded but the
screws are "Thread Cutting Screws" and will cut a
thread as they are tightened
DISC DUST TRAP
8, Find four Flat Head Machine Screws 1-3/4"long from
among the loose paris
1-3/4"
FLAT HEAD SCREWS
1 3/4" LONG
FLAT SPOT
ON SHAFT
9 Attach the Disc Dust Trap with four flat head screws
1-¾" long
10 There is a flat spot on the shaft near the end Rotate
the shaft so that the flat spot is facing up
9
