Snack / Refreshment Center Setup and Operator's Guide
Page 20April, 1999 1670001

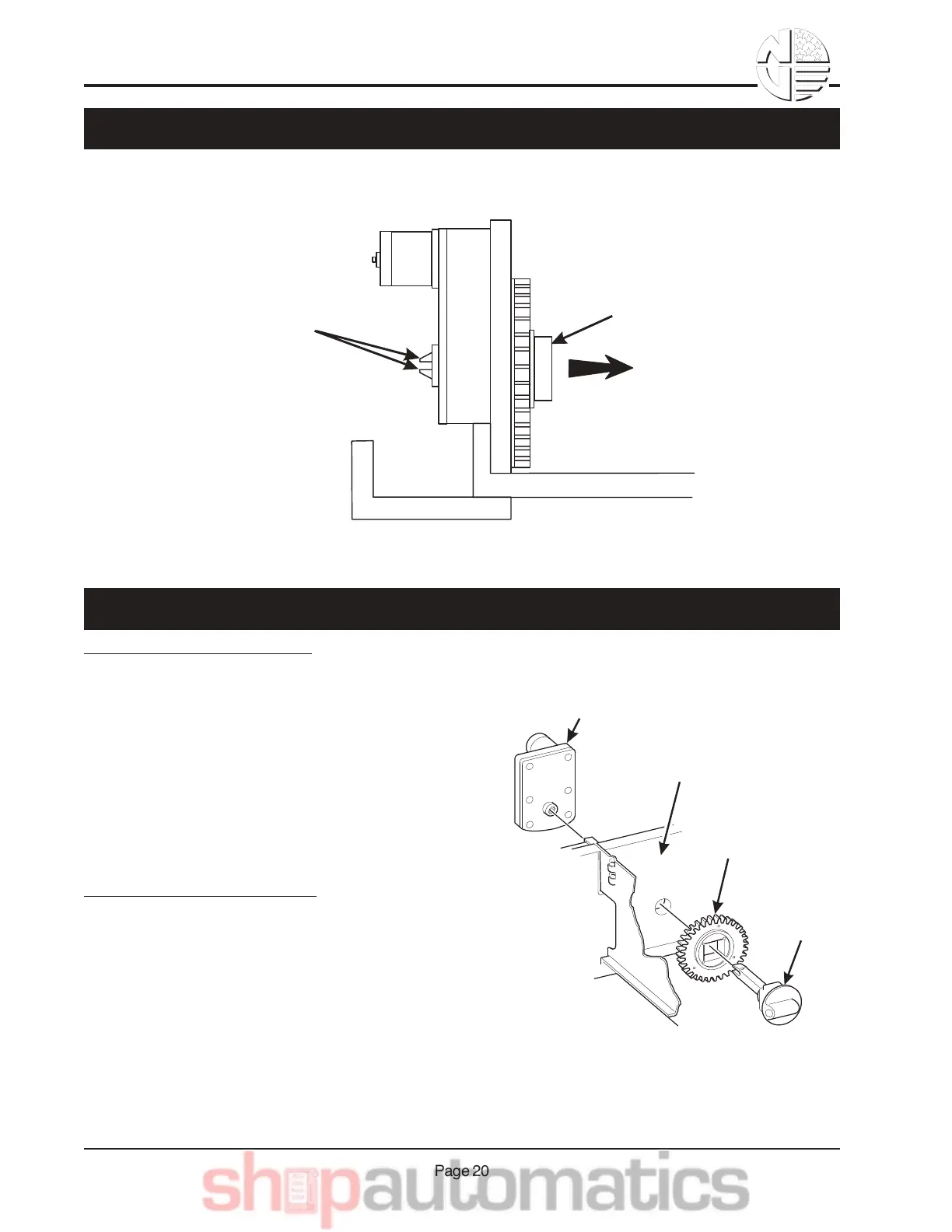

PRONGS
SPIRAL
COUPLER
PULL
1. Pinch together the prongs on the end of the spiral coupler as shown.
2. Pull the coupler forward (in the direction of the arrow as shown).
REMOVING A SPIRAL MOTOR: NOTE, some steps may already be completed.
1. Remove the tray. See REMOVING A TRAY.
2. Disconnect the motor harness. See CONNECTING AND
DISCONNECTING A MOTOR HARNESS.
3. Remove the spiral. See REMOVING AND INSTALL-
ING SPIRALS.
4. Remove the spiral coupler. See REMOVING A SPI-
RAL COUPLER.
5. Lift the motor clear of the tray.
6. Return the tray to the merchandiser. See
INSTALING A TRAY IN THE MERCHANDISER.
INSTALLING A SPIRAL MOTOR:
1. Remove the tray. See REMOVING A TRAY.
2. Place the motor in the correct position at the rear of the tray as
shown.
3. Place a gear in position if required by this set-up. See
INSTALLING A GEAR.
4. Install a spiral coupler in the proper orientation. See INSTALLING A
SPIRAL COUPLER.
5. Connect the motor harness. See CONNECTING AND DISCONNECTING A MOTOR HARNESS.
6. Return the tray to the merchandiser. See INSTALING A TRAY IN THE MERCHANDISER.
GEAR
SPIRAL
COUPLER
BACKWALL
OF TRAY
˜
SPIRAL
MOTOR
'$+"C*,D& 1& L0*%17& 6")07$%
'$+"C*,D& 1,8& 9 ,.-177*,D& 1& L0*%17& 5"-"%
