WHEN ARE GEARS USED?
• Gears are used to mechanically couple the spirals together.
•This happens whenever you have two spirals and only one motor for vending a selection.
WHERE ARE THE GEARS PLACED?
•The gear is placed between the back of the tray and the spiral coupler.
HOW IS THE GEAR ORIENTED?
•There are two possible orientations for the gear:
•There are two rules to follow when orienting gears:
RULE 1 -The gears for selections next to each other cannot use the same orientation.
RULE 2 -All gears for a single selection must use the same orientation.

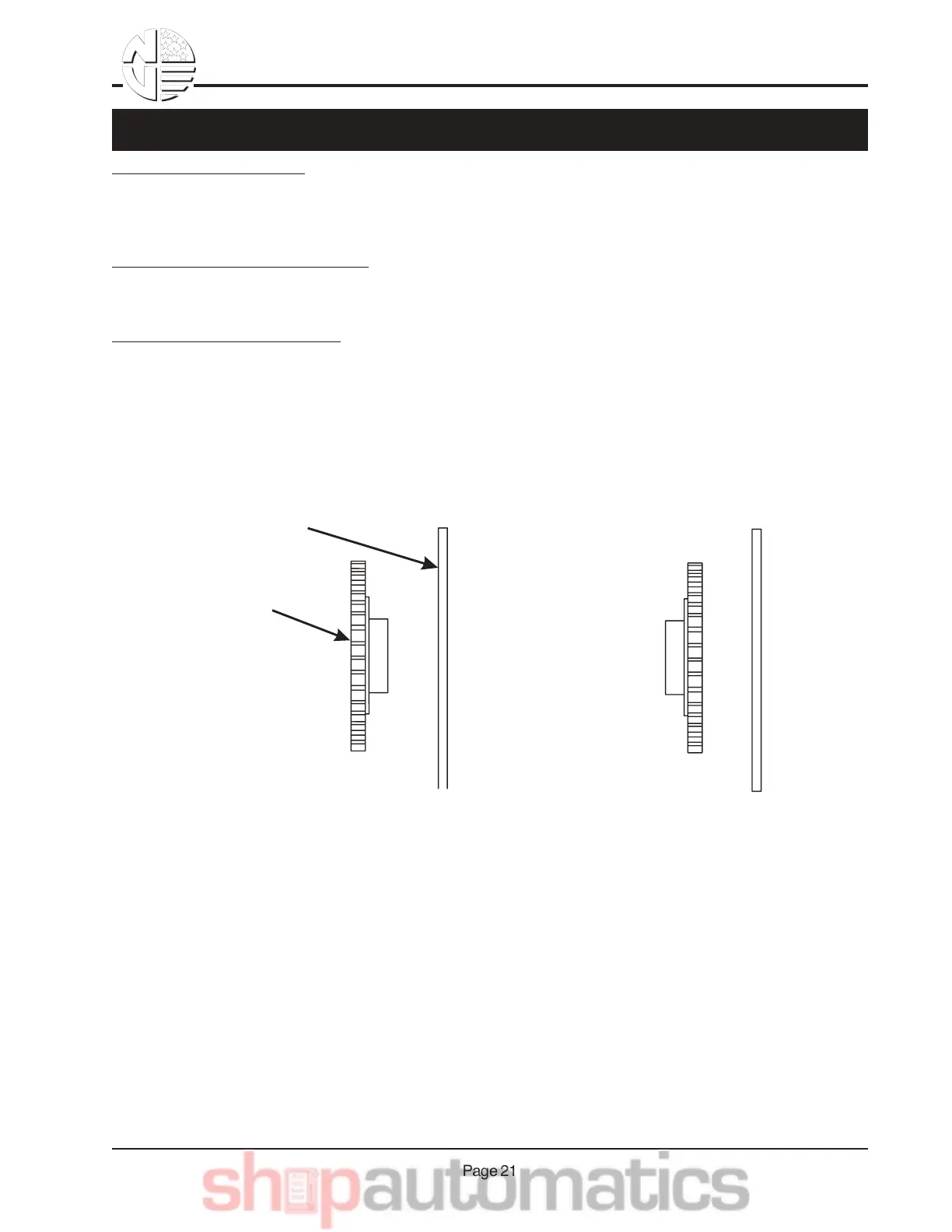

BACK WALL
OF TRAY
GEAR
ORIENTATION 1 ORIENTATION 2
