Snack / Refreshment Center Setup and Operator's Guide
Page 22April, 1999 1670001
1. Place the gear in position if one is required for this set-up. See INSTALLING A GEAR.
WHEN USED WITH A MOTOR:

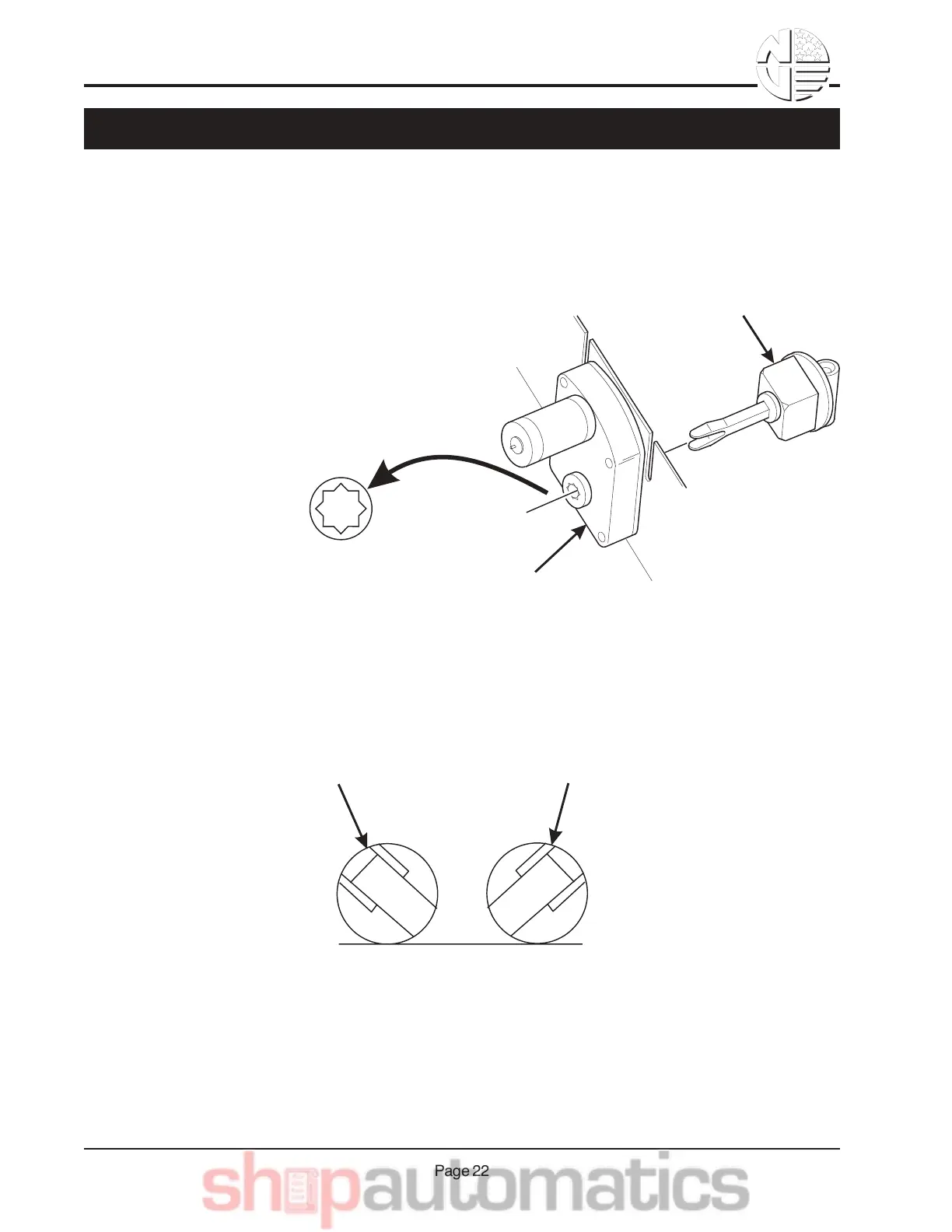

2. Hold the motor in place and push the spiral coupler through the motor gear box until it clicks into
position. Be sure the spiral couplers are oriented as
shown below.
NOTE
The motor output shaft opening
contains eight facets to allow the
spiral coupler to be installed
in any one of eight
positions.
LEFT SPIRAL
COUPLER
RIGHT SPIRAL
COUPLER
AS VIEWED FROM FRONT OF TRAY
ONE POSITION
COUNTERCLOCKWISE
FROM VERTICAL
ONE POSITION
CLOCKWISE
FROM VERTICAL
MOTOR
SPIRAL
COUPLER
FRONT VIEW OF
MOTOR OUTPUT SHAFT
SPIRAL COUPLER ORIENTATION
