Snack / Refreshment Center Setup and Operator's Guide
Page 42April, 1999 1670001

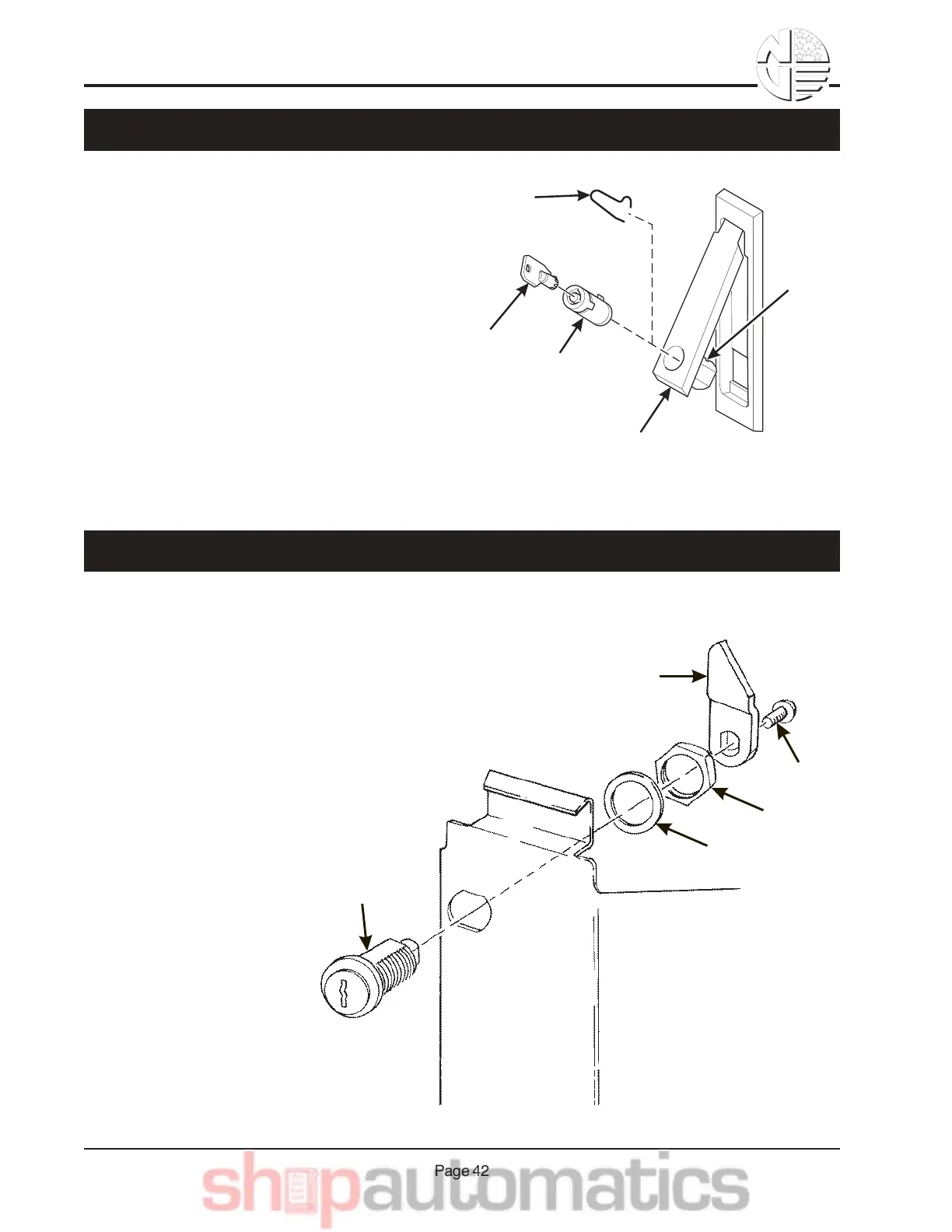

Install an optional lock cylinder in the merchandiser
as follows:
1. Position the lift handle lock lever as shown.
2. Depress the lock spring at the square hole of
the lock cylinder receptacle and pull the lock
springs out through the front.
3. Position the lock cylinder as shown. Depress
the spring loaded lock pin.
4. Push the cylinder into the cylinder receptacle
in the lever. The pin should snap into the
square hole.
5. If the cylinder pin does not seat in the square hole,
press against both ends of the lock cylinder. Rotate the cylinder
until the pin snaps into place.
6. Leaving the door open, test the lock mechanism with a key.
LOCK
SPRING
KEY
LOCK
CYLINDER
LEVER
SQUARE
HOLE
LOCK BAR
SCREW
NUT
WASHER
LOCK
CYLINDER
1. Remove the cash box from the merchandiser.
2. Assemble the lock as shown in the illustration to the right.
3. Return the cash box to the merchandiser.
