Creality CR-10 S4 User Manual

09
9.V wheel leveling
Before starting up, please check the tightness of the V wheel.

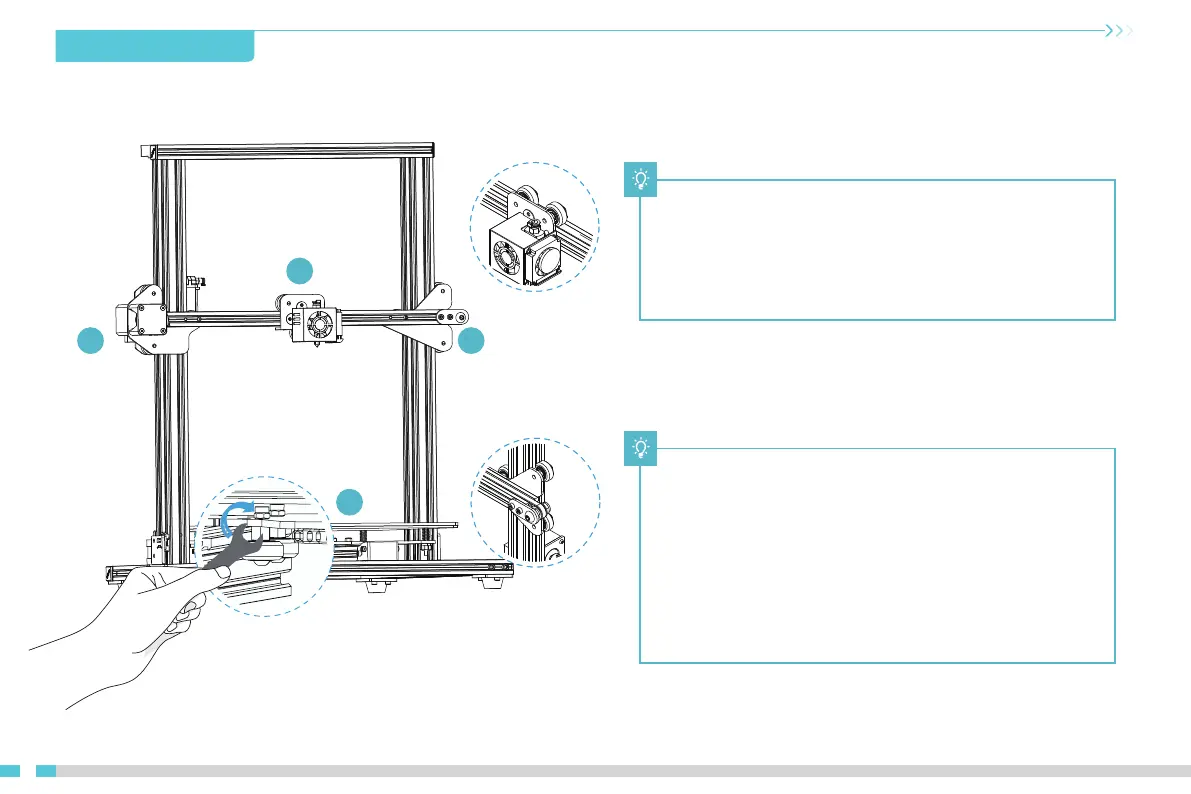

Z axis V wheel adjustment:
X/Y axis V wheel adjustment:
Gently dial the V-wheel by hand to check whether it is idling or stuck.
If this phenomenon occurs, use an open-end wrench to adjust the
eccentric isolation column to make it rotate smoothly.
Gently dial the V-wheel by hand to check whether it is idling. If this
phenomenon occurs, use an open-end wrench to adjust the eccentric
isolation column counterclockwise so that the V-wheel has no idling.
Power on and click on the interface to return to the origin. After
returning to the origin, move the Z axis separately, and feel whether
the printing platform is stuck. If there is a stuck, adjust the eccentric
spacer clockwise to make it move smoothly.
Y
X
Z
Y
Adjustable eccentric isolation column

Creality CR-10 S4 Specifications

General

Build Volume	400 x 400 x 400 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Connectivity	SD card, USB
Frame Material	Aluminum
Bed Leveling	Manual
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Nozzle Temperature	Up to 250°C
Layer Resolution	0.1 - 0.4 mm
Printing Speed	Up to 180 mm/s, typically 40-80 mm/s
Supported Filament Types	PLA, ABS, TPU, Wood
Bed Temperature	Up to 100°C
Power Supply	110V/220V
