Creality CR-10 S4 - Device Installation

05
Note: M ake sure that the nut for
prof ile has bee n turned by 9 0 °
before fastening the
T- shaped fixing block.
M5X25
4pcs
*CR- 10 mini without T- Bracket (right).

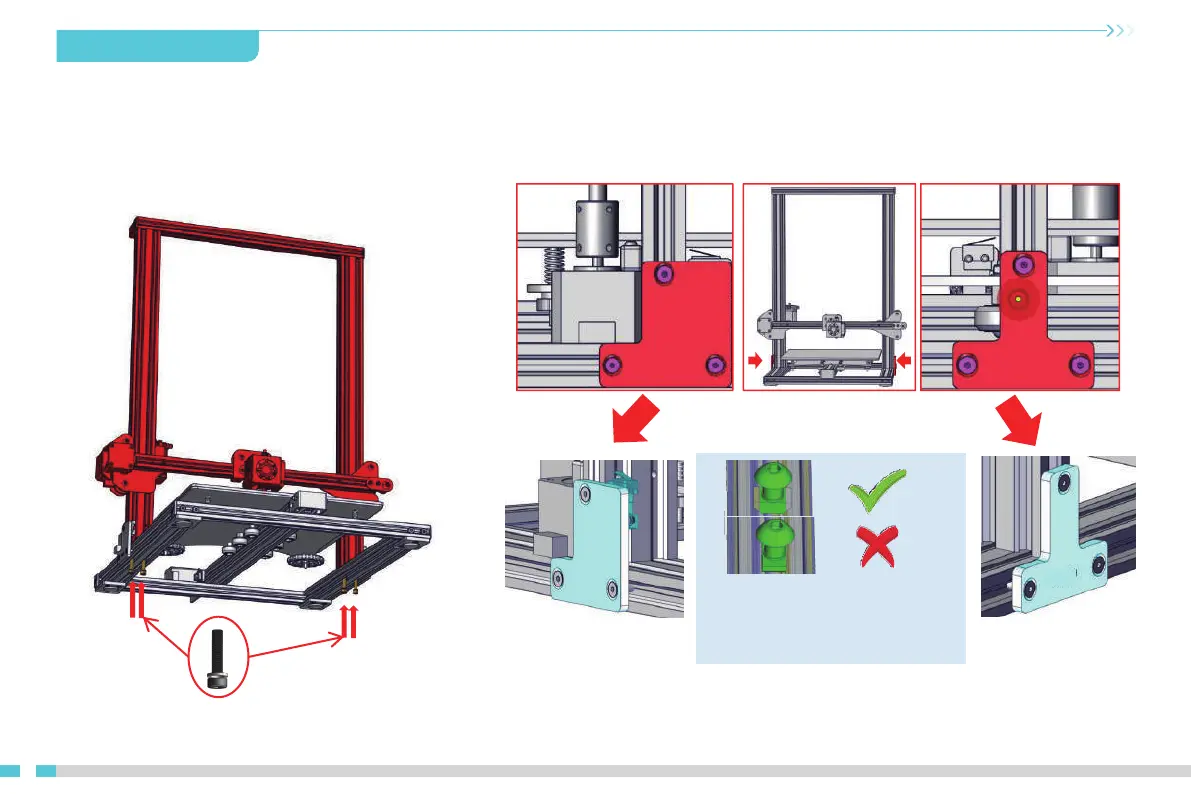

Install the Gantry Frame
Install the T- shaped fixing block.
5.Device Installtion


