Creality CR-10 S5 User Manual

1. Introduction
01
1
1
9
10
11
12
13
14
15
16
17
18
19
20
2
3
4
5
6
7
8
2
3

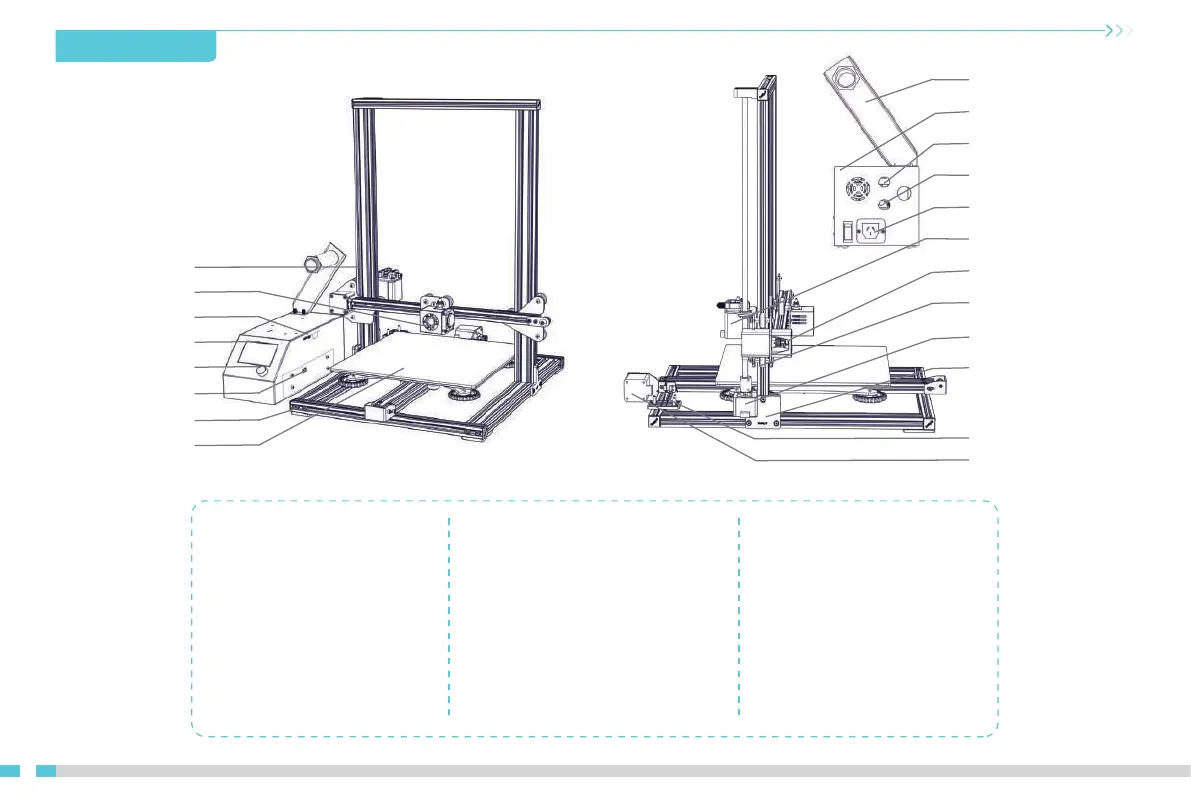

Display Screen
TF Slot and USB Port
Nozzle Kit
Z Gantry Frame Platform
Filament Holder
Control Box
Nozzle Assembly
Connectiom
Platform Connection
Power Cable Connection
Extruder(E) Stepper
X Limit Switch
Z Limit Switch
Y Limit Switch
X Stepper
Z Stepper
Y Stepper
Control Knob
Voltage Selection
Base Frame
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

Creality CR-10 S5 Specifications

General

Build Volume	500 x 500 x 500 mm
Layer Resolution	0.1-0.4 mm
Printing Speed	Up to 200 mm/s
Filament Diameter	1.75 mm
Connectivity	SD card, USB
Frame Material	Aluminum
Display	LCD screen
Printing Technology	FDM (Fused Deposition Modeling)
Heated Bed	Yes
Bed Temperature	Up to 100°C
Nozzle Temperature	Up to 250°C
File Format	STL, OBJ, G-code
Nozzle Diameter	0.4 mm
Supported Filaments	PLA, ABS, TPU
Power Supply	AC 110-220V
