User Manual
C O PYRIG HT ©2016 C reatComm Technology

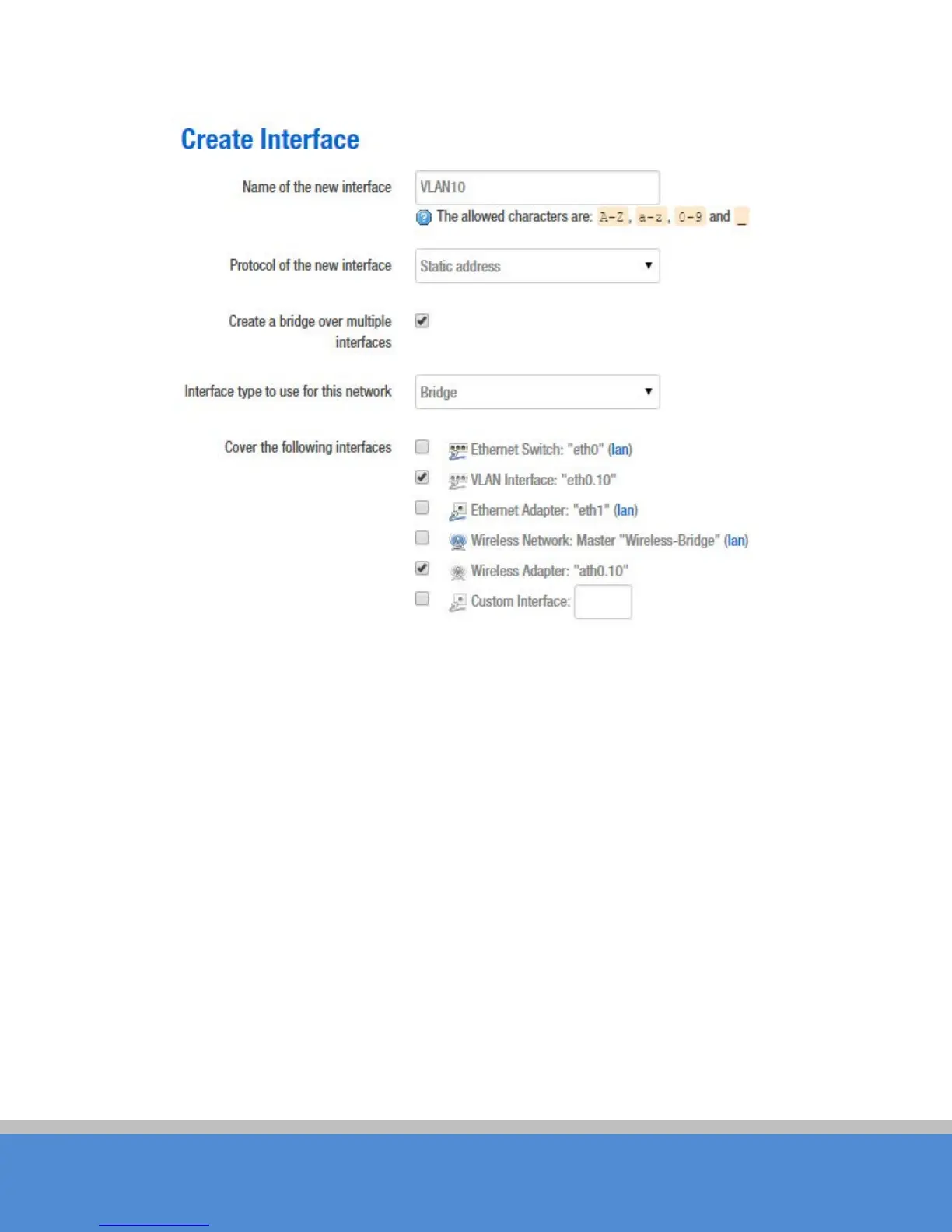

Fig ure 7-31 B ind ing V LA N Inte rfac e s
The packets from eth0.10 or ath0.10 will be added a VLAN label which ID is 10. That
requires: the opposite wireless connection side must support VLAN 10, the device which
connects with eth0 is also need to support VLAN 10 (such as a VLAN Switch).
Common connection mode as shown below:
