Connect the Touch Screen

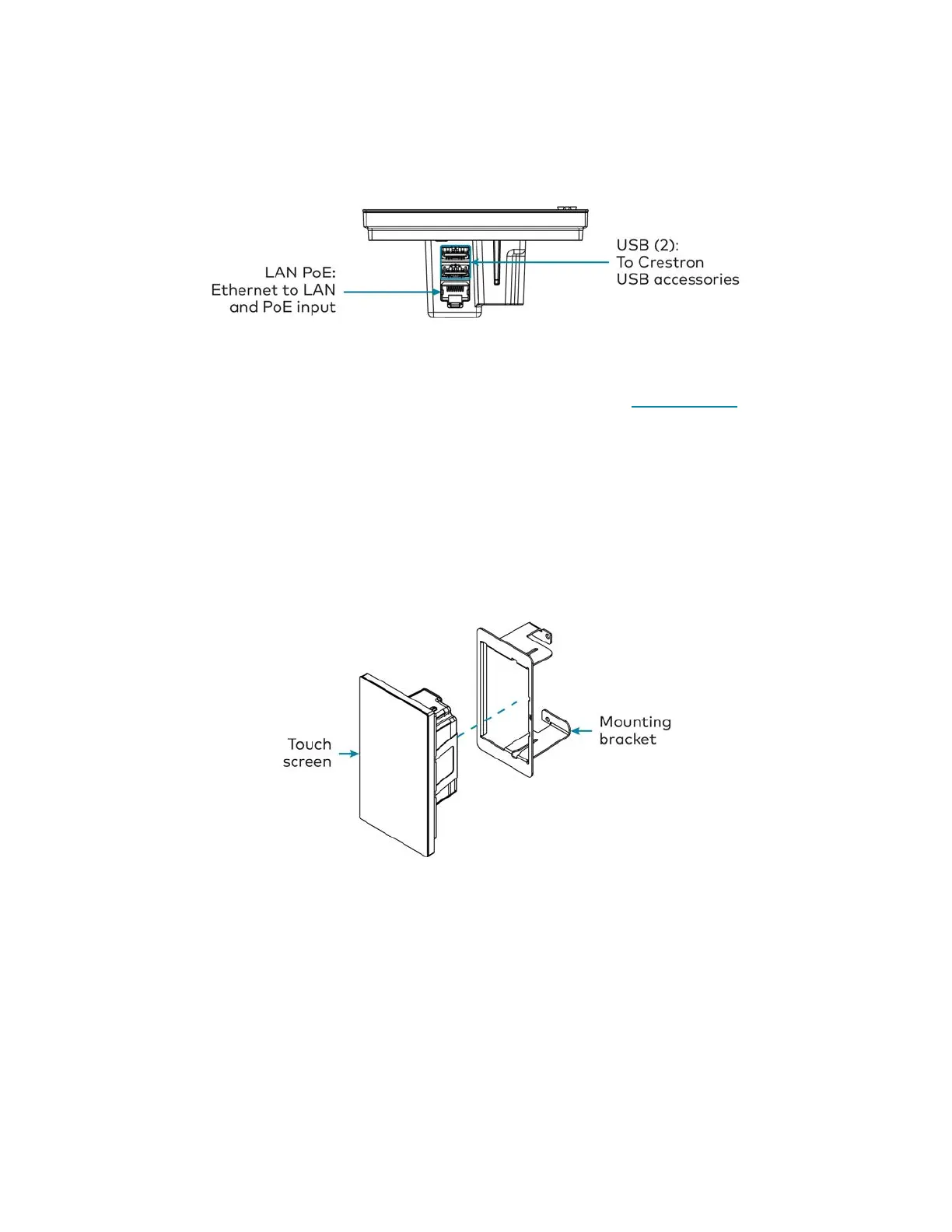

Route all necessary cables through the rear of the mounting bracket, and then make connections
to the bottom of the touch screen rear housing.
Observe the following when connecting the touch screen:
l
Power and data connection is provided to the touch screen by a single Ethernet cable. A
Crestron PoE (Power over Ethernet) power supply, such as the PWE-4803RU, or a PoE-
capable network switch is recommended (neither included).
l
The USB ports are used to connect compatible Crestron LED accessories to the touch
screen.
l
Apply power after all connections have been made.
Mount the Touch Screen
After all connections have been made, push the touch screen gently into the mounting bracket so
that its rear housing is secured within the center opening of the mounting bracket.
If the touch screen is not level after installation, pull it out of the mounting bracket and loosen
the screws holding the bracket into place. This procedure allows the mounting bracket to be
rotated slightly.
Once the mounting bracket has been repositioned, retighten the screws, reinstall the touch
screen into the bracket, and ensure that the touch screen is now level.
