Crestron TSW-70 Series User Manual

96 • TSW-70 Series ProductManual—Doc.8550E
TSW-570, TSW-770, and TSW-1070
Installation
Use the following procedures to install the TSW-570, TSW-770, and TSW-1070 touch screens.
Install the Mounting Bracket
The TSW-570 uses a different mounting bracket than the TSW-770 or TSW-1070. The
procedures for installing each mounting bracket are described in the following sections.
Install the TSW-570 Mounting Bracket
The TSW-570 can be mounted into drywall and other surfaces, or it can be mounted onto a wall
stud.
NOTE: Additional mounting options are possible using the TSW-UMB-70 universal mounting
bracket, TSW-UMB-70-PMK preconstruction mounting kit, TSW-UMB-70-BBI wall mount back
box, or TSW-570/770-RMK-1 rack mount kit. For more information, refer to the product pages
at www.crestron.com.

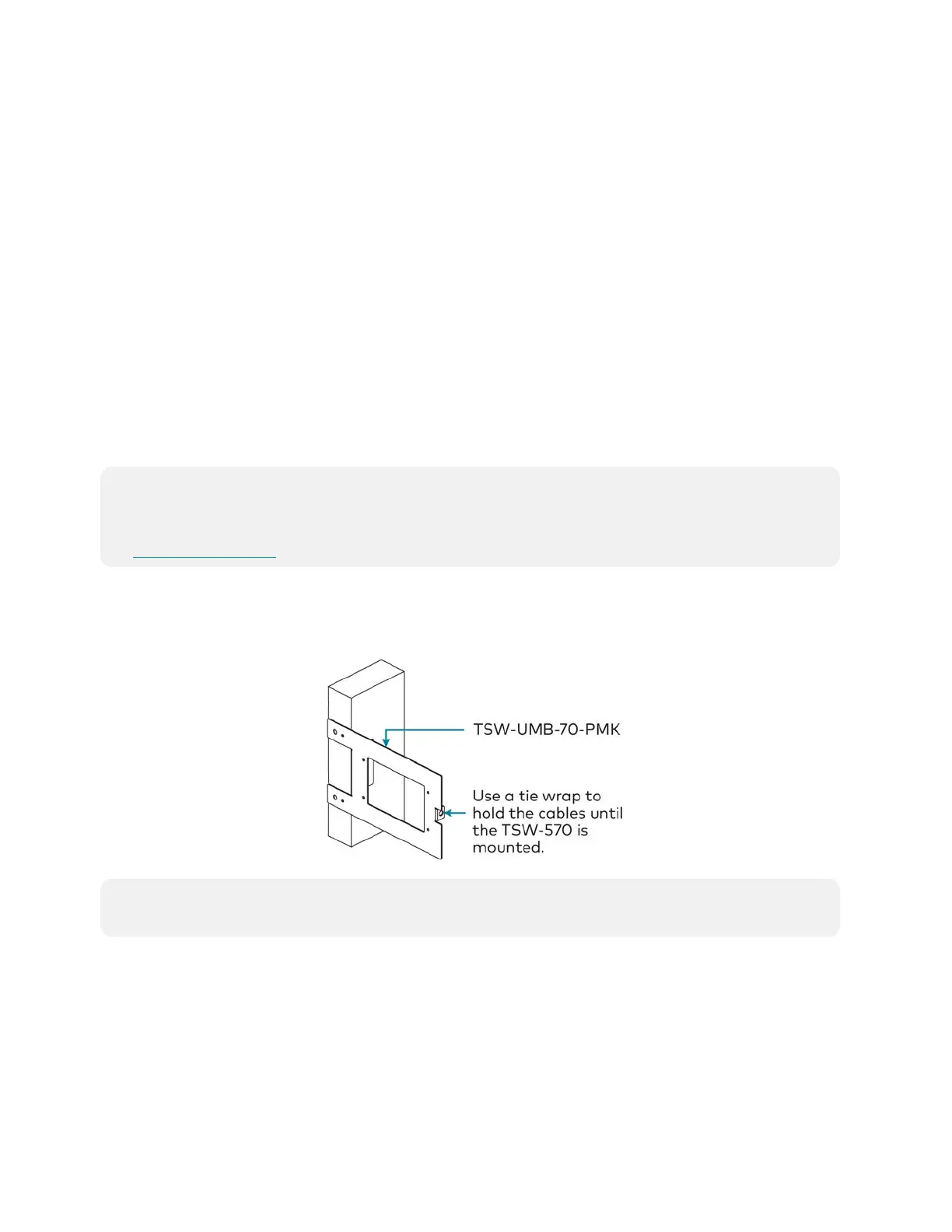

Preconstruction Installations
To install the TSW-570 mounting bracket in preconstruction applications, use standard drywall
nails or screws (not included)to attach the TSW-UMB-70-PMK mounting bracket to a wall stud.
NOTE:Allowan air gap of at least 12 in. (305 mm)in the wall cavity above and below the touch
screen for heat dissipation.
Postconstruction Installations
To install the TSW-570 mounting bracket in postconstruction applications:
1. Use the TSW-UMB-70-PMK mounting bracket as a cutout template by turning the bracket
to face the wall, ensuring it is level, and tacking it to the wall temporarily with finishing
nails (not included)throughthe smaller holes around the cutout opening.
