126 • TSW-70 Series Product Manual — Doc. 8550E
Install the Security Bracket (Optional)
The included security bracket may be attached to the touch screen to prevent unauthorized
removal after installation. The security bracket snaps into place behind the mounting bracket so
that the touch screen cannot be removed without using the included release key.

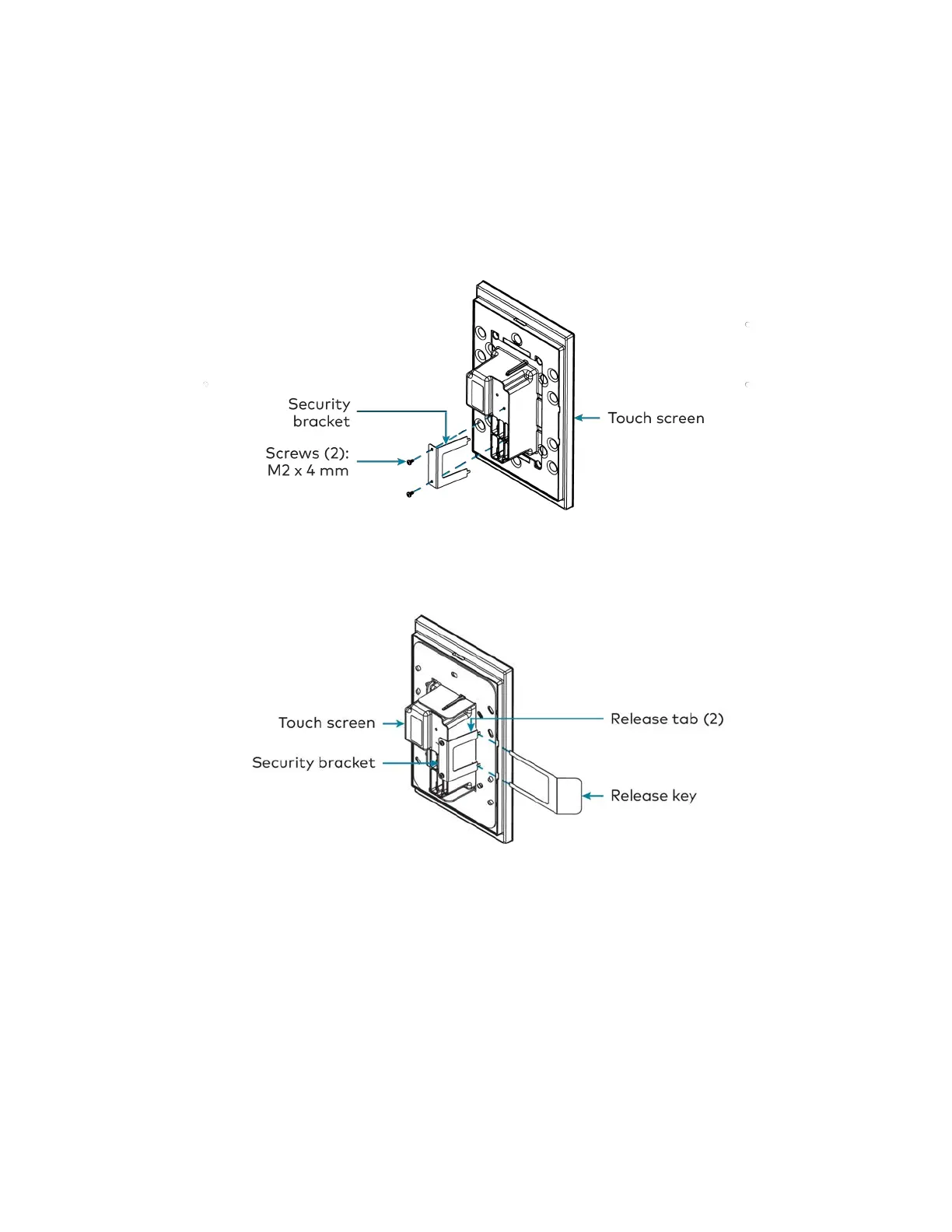

Use the two M2 x 4 mm screws to attach the security bracket to the touch screen rear housing as
shown in the following illustration.
To remove the touch screen after installation, use the included release key to push down on the
security bracket release tabs as shown in the following illustration while gently pulling the touch
screen away from the mounting bracket.
