164 • TSW-70 Series Product Manual — Doc. 8550E
Test Patterns
Tap Test Patterns on the Diagnostics & Advanced screen to display the Test Pattern Diagnostics
screen.

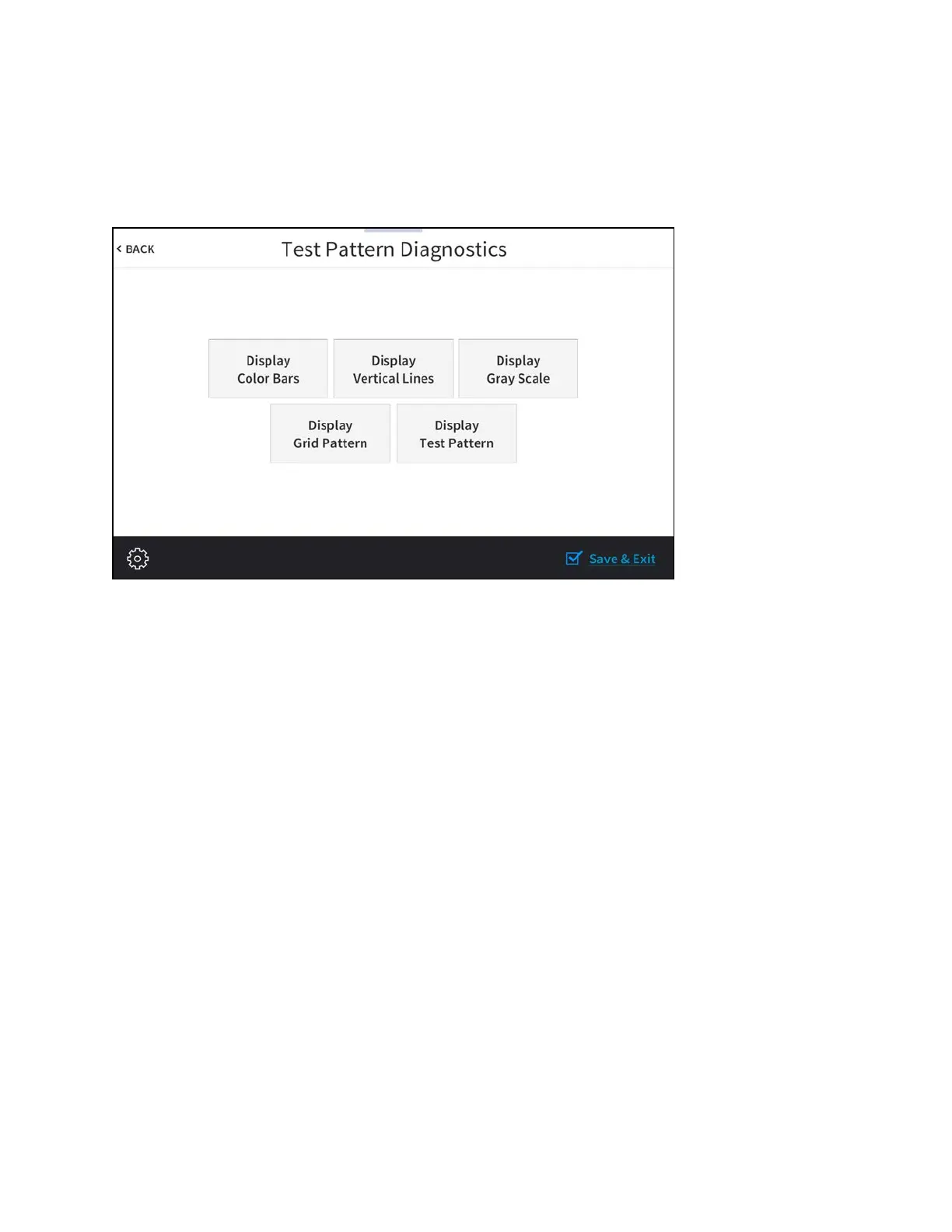

Test Pattern DiagnosticsScreen
Use the Test Pattern Diagnostics screen to display any of the available test patterns. Tap one of
the buttons on the screen to display its respective test pattern.
Tap < BACK to return to the Diagnostics & Advanced screen.
