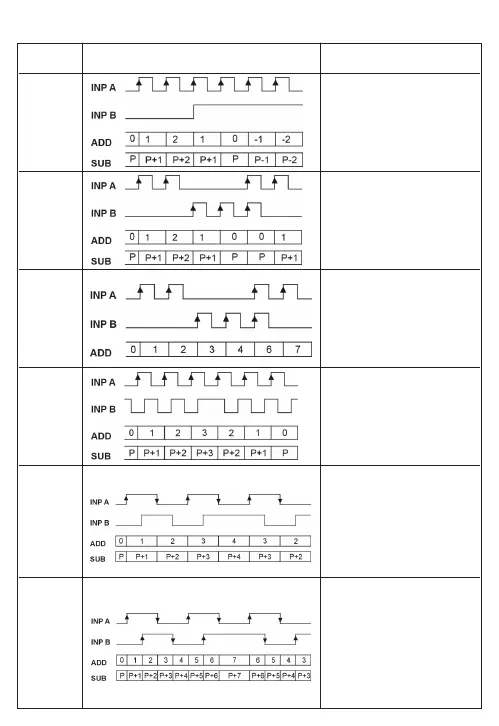

12. Input modes: Pulse counting
Function Note: No counting when GATE input is active PnP: Count on rising edge
P = Preset nPn: Count on falling edge
dir Inp A: Count input
Inp B: Count direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
AS Inp A: Count input add
Inp B: Count input sub
Add: Display 0 --> Preset
Sub: Display Preset -> 0
AA Inp A: Count input 1 add
Inp B: Count input 2 add
Add: Display 0 --> Preset
PP A 90° B
Inp A: Count input
Count on one edge
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
PP 2 A 90° B
Inp A: Count input
Count on rising and on falling
edges
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
PP 4 A 90° B
Inp A: Count input
Count on rising and on falling
edges
Inp B: Count input
Count on rising and on falling
edges, Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
