Crouzet CTR48 Series User Manual

15

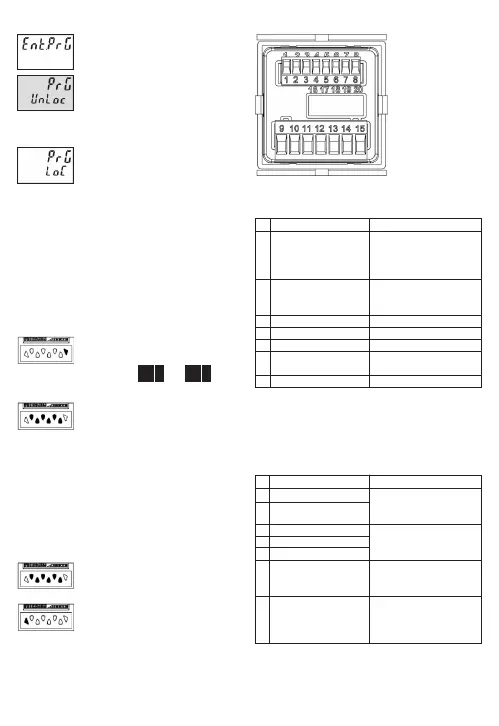

6.8.9 Main menu Programming lock
Main menu Programming lock
Access to programming during
operation: press the Reset and
Prog/Mode keys simultane-
ously for 3 seconds
Access to programming: press
the Reset and Prog/Mode keys
simultaneously within 15 s after
applying the supply voltage
6.9 Presets setting
6.9.1 Setting via decade keys
In operating mode, the lower line will al-
ways display the main preset, excepted for
the output operations bCrSA0, bCrSA2,
bCrS0, bCrSP2, tCrSA0, tCrSA2, tCrS0,
tCrSP2 and the Multifunction totalizer
Press the Prog/Mode key until
the preset to be changed is
displayed or .
Press any decade key.
(depending on the release
mode of the programming lock
for the presets:
unloc = editable
loc = locked
locti = >10s editable)
➯ The display switches to the edition
mode
Set the desired preset value
using the decade keys
Approx. 3 s after the last press
of a decade key, or by press-
ing the Reset key, the new pre-
set value will be taken over
and the counter will switch
back to operating mode.
PR 1 PR 2
7. Connections
7.1 Signal and control inputs/outputs
N° Designation Function
1 AC : 24 VDC/50 mA Output for sensor
supply
DC: U
B
connected voltage
through
2 GND (0 VDC) Common conection
signal
and control inputs
3 INP A Signal input A
4 INP B Signal input B
5 RESET Reset input
6 GATE Gate input
7 OUT1* Transistor output 1
8 OUT 2 Transistor output 2
* NC not available on CTR48 with 1 preset, shall
not be connected
7.2 Supply voltage and outputs
7.2.1 Relay version
N° Désignation Function
9 Relay contact C.1 Output 1 not availa-
ble on CTR48 with
10 Relay contact N.O.1 1 preset
11 Relay contact C.2
12 Relay contact N.O.2 Output 2
13 Relay contact N.C.2
14 AC : 90..260 VAC N~
AC : 24 VAC N~ Supply voltage
DC : 10..30 VDC
15 AC : 90..260 VAC L~
AC : 24 VAC L~ Supply voltage
DC : GND (0 VDC)
