Crouzet CTR48 Series User Manual

13

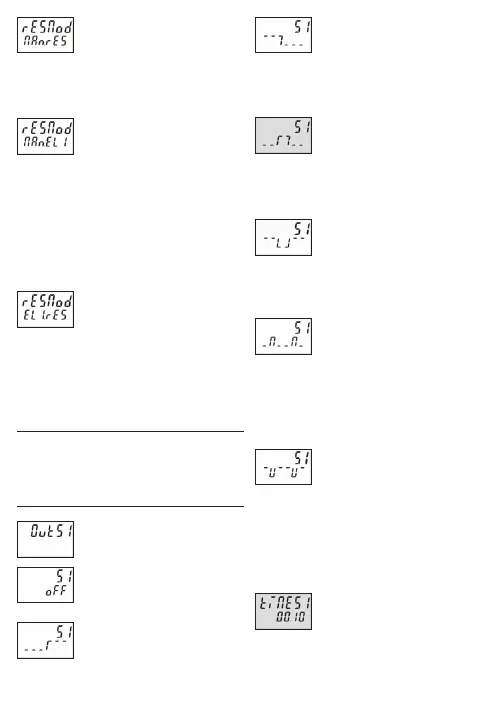

Manual reset (red key)
for adding/subtracting output
operations with the batch
counter/totalizer:
<3s main counter = 0/preset 2,
>5s totalizer = 0/preset 1
Manual reset (with red key)
and electrical reset (reset
input)
only for adding/subtracting out-
put operations with the batch
counter/ totalizer:
<3s main counter = 0/preset 2,
>5s totalizer = 0/preset 1, elec-
trical reset: main counter =
0/preset 2, Batch counter =
0/0/totalizer = 0/preset 1
Electrical reset (reset input)
only for adding/subtracting out-
put operations with the batch
counter/totalizer:
electrical reset: main counter =
0/preset 2, Batch counter =
0/0/totalizer = 0/preset 1
6.8.7 Main menu for Preset 1
For counters with 1 preset,
preset 1 is the main preset
and acts on output 2. The de-
scription of output 2 then ap-
plies to the main preset.
Main menu for turning preset 1
ON/OFF
Preset 1 off
Adding output operations:
permanent signal ON > preset 1
Subtracting output operations:
permanent signal ON < preset 1
Adding output operations:
permanent signal OFF >
preset 1
Subtracting output operations:
permanent signal OFF < pre-
set 1
Adding output operations:
timed signal ON > preset 1
(only in positive direction)
Subtracting output operations:
timed signal ON < preset 1
(only in negative direction)
Adding output operations:
timed signal OFF > preset 1
(only in positive direction)
Subtracting output operations:
timed signal OFF < preset 1
(only in negative direction)
Adding output operations:
timed signal ON > preset 1 in
positive direction and ON <
preset 1 in negative direction
Subtracting output operations:
timed signal ON < preset 1 in
negative direction and ON >
preset 1 in positive direction
Adding output operations:
timed signal OFF > preset 1 in
positive direction and OFF <
preset 1 in negative direction
Subtracting output operations:
timed signal OFF < preset 1 in
negative direction and OFF >
in positive direction
Pulse duration Preset 1
Duration of the timed signal of
output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered

