14
english

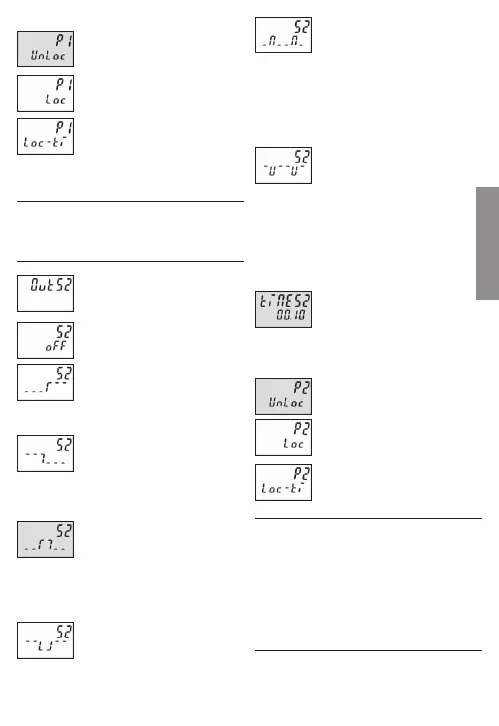

Programming lock for Preset 1
Preset 1 can be edited in oper-
ating mode
Preset 1 is locked and cannot
be edited in operating mode
Preset 1 can be edited after
pressing a decade key for
more than 10 seconds.
6.8.8 Main menu for Preset 2
Not applicable for the CTR 48
with 1 preset, this menu
description then applies to
output 1.
Main menu for turning preset 2
ON/OFF
Preset 2 off
Adding output operations:
permanent signal ON > preset 2
Subtracting output operations:
permanent signal ON < zero
Adding output operations:
permanent signal OFF >
preset 2
Subtracting output operations:
permanent signal OFF < zero
Adding output operations:
timed signal ON > preset 2
(only in positive direction)
Subtracting output operations:
timed signal ON < zero
(only in negative direction)
Adding output operations:
timed signal OFF > preset 2
(only in positive direction)
Subtracting output operations:
timed signal OFF < zero
(only in negative direction).
Adding output operations:
timed signal ON > preset 2 in
positive direction and ON <
preset 2 in negative direction
Subtracting output operations:
timed signal ON < zero in neg-
ative direction and ON > zero
in positive direction
Adding output operations:
timed signal OFF > preset 2 in
positive direction and OFF <
preset 2 in negative direction
Subtracting output operations:
timed signal OFF < zero in
negative direction and OFF >
zero in positive direction
Pulse duration Preset 2
Duration of the timed signal
of output 2, programmable
from 00.01 to 99.99 s.
Timed output is post-triggered
Programming lock for Preset 2
Preset 2 can be edited in oper-
ating mode
Preset 2 is locked and cannot
be edited in operating mode
Preset 2 can be edited after
pressing a decade key for
more than 10 seconds
ON:
The relay or transistor is acti-
vated when the preset value is
reached.
OFF:
The relay is de-activated or the
transistor is blocked when the
preset value is reached.
