Crouzet CTR48 Series User Manual

11
With the Timer function, the
Gate input has the function of a
display buffer: the counting is
not displayed while it is active.
The new value is updated on
the display when counting
stops

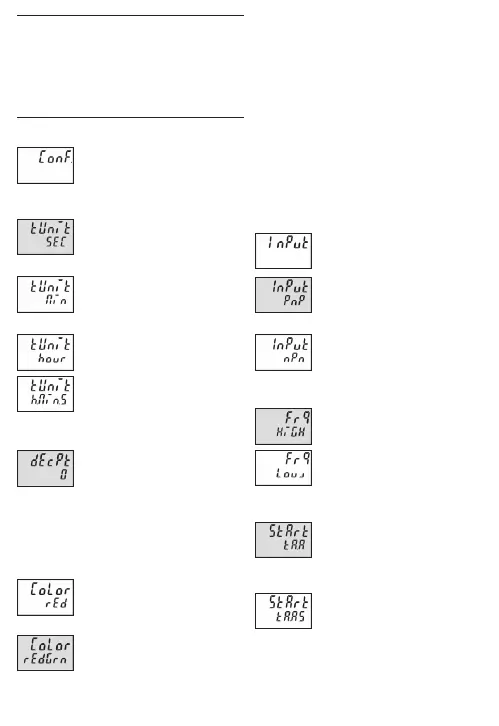

6.8.4.3 Main menu for configuration
Parameter menu for matching
the time ranges and the dis-
play
Time unit
Time unit: seconds
The decimal point setting de-
termines the resolution
Time unit: minutes
The decimal point setting de-
termines the resolution
Time unit: hours
The decimal point setting de-
termines the resolution
Time unit: Hrs. Min. Sec.
Decimal point setting (Resolution)
Decimal point
(determines the resolution)
0 no decimal place
0.0 1 decimal place
0.00 2 decimal places
0.000 3 decimal places
Display colour
(only for red-green version)
Display colour
upper line red
lower line red
Display colour
upper line red
lower line green
6.8.4.4 Main menu for reset mode
See below 6.8.6
6.8.4.5 Preset 1
See below 6.8.7
6.8.4.6 Preset 2
See below 6.8.8
6.8.4.7 Main menu Programming lock
See below 6.8.9
6.8.5 Tacho/Frequency meter
6.8.5.1 Main menu for the signal and
control inputs
Main menu for programming
the signal and control inputs
Input polarity
PnP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs InpA and Inp B
Maximum count frequency
Damped to approx. 30 Hz
(for control with mechanical
contacts)
Frequency Measurement input mode
Simple frequency
measurement
Inp A: frequency input
Inp B: no function
Differential measurement
[A – B]
Inp A: frequency input A
Inp B: frequency input B

